• Communicates with your phone via Bluetooth
• app via Google Play and iTunes App Store
• Easy DIY installation – no mechanical expertise required
• Works with batteries in parallel (7Ah-800Ah battery bank)
• Internal shunt capacity – 300A peak, 240A continuous
• Compatible with deep cycle lead acid, AGM, Gel and LiFePO4 batteries

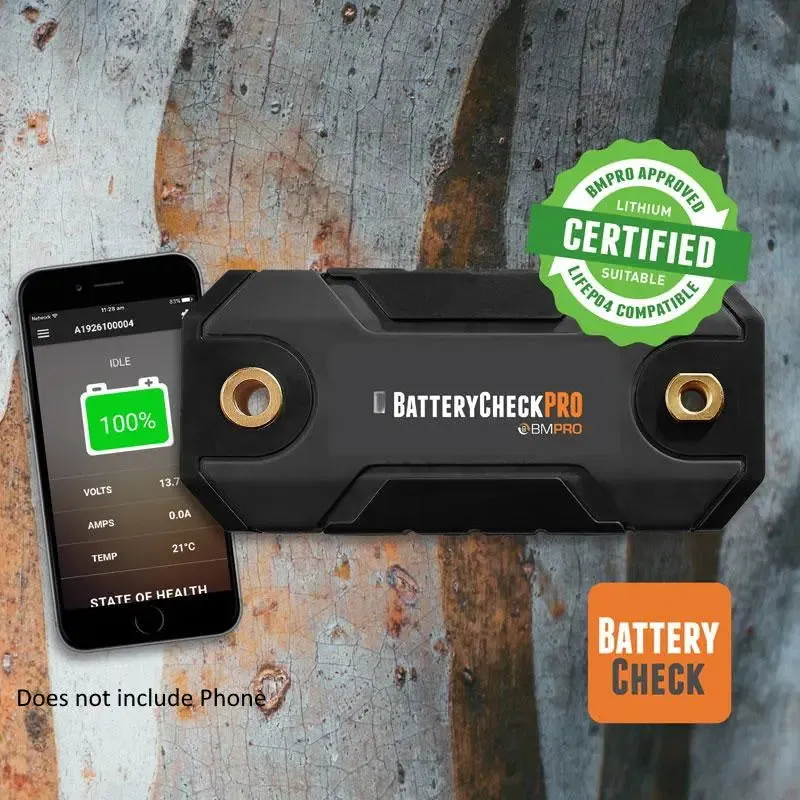

WIRELESSLY MONITOR YOUR 12V BATTERY WITH AN APP

With BatteryCheckPRO, you can really understand your recreational vehicle’s 12V battery. Choose BatteryCheckPRO if you rely on your secondary battery to operate microwave, inverter, hair dryer, or have other high current requirements (over 100A). BatteryCheckPRO is compatible both with lead acid and lithium (LiFePO4) types of deep cycle batteries.

We all know that a simple measurement of voltage is not enough to really comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be confident your battery is in good health and has enough power for your next adventure.

BatteryCheckPRO is a wireless battery monitor with the latest Bluetooth LE technology built in, so you can monitor your battery in real time via smartphone with the app. The new and improved app is highly intuitive, clear and easy to use. It allows to choose the type and capacity of the battery and also to change battery reserve, which gives even more control over your vehicle’s power usage.

Download BatteryCheck100 PRO app from Google Play store or and set the monitoring in minutes.

Specially designed for recreational vehicles’ secondary batteries, BatteryCheckPRO allows monitoring up to 300A maximum charge or discharge.

BatteryCheckPRO is not suitable with engine cranking applications of any type and is not intended for under vehicle bonnet use. However, you can use it in a Ute tray application in a sealed battery box or in a marine application if the battery area is free from water and salt.

BATTERY PARAMETERS MONITORED ARE:

• Voltage and Temperature
• Charge/Discharge Current
• State of Charge (SoC)
• State of Health (SoH)
• Estimated Discharge Time Remaining

With wireless battery monitor BatteryCheckPRO, you’ll always have enough power to keep your adventures on track.

Input Voltage Range 8V to 16V
Voltage Measurement Resolution 20mV
Continuous Current Rating 240A
Current Measurement Range 300A
Current Measurement Resolution 150mA
Overload Protection (100ms w/out damage) 800A
Monitored Battery Capacity 7Ah to 800Ah
Temperature Measurement Range -20 °C to 70 °C (at Battery Terminal)
Temperature Measurement Resolution 1 °C
Dimensions 140mm x 65mm x 18.6mm
Weight 520g

Super handy to check your battery status from your phone

**does not include Phone
