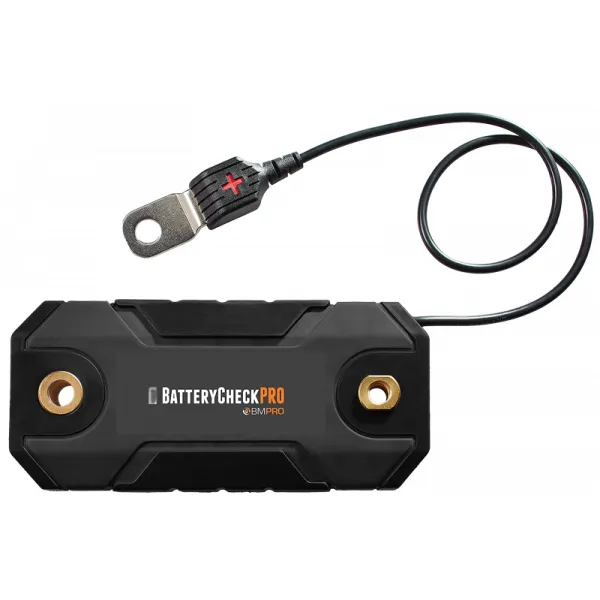

With wireless battery monitor BatteryCheckPRO, you can understand your recreational vehicle’s 12V battery. Choose BatteryCheckPRO if you rely on your secondary battery to operate a microwave, inverter, or hair dryer, or have other high current requirements (over 100A). BatteryCheckPRO is compatible both with lead acid and lithium (LiFePO4) types of deep-cycle batteries.
We all know that a simple measurement of voltage is not enough to comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be confident your battery is in good health and has enough power for your next adventure.

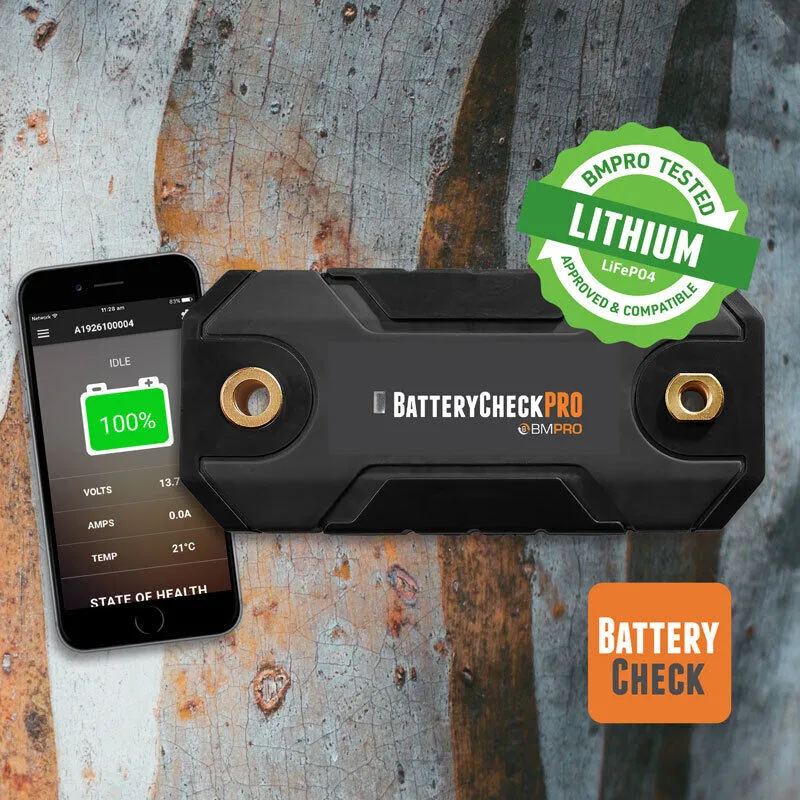

is a with the latest Bluetooth LE technology built in, so you can monitor your battery in real time via smartphone with the app. The new and improved app is highly intuitive, clear, and easy to use. It allows you to choose the type and capacity of the battery and also to change battery reserve, which gives you even more control over your vehicle’s power usage.
Download the BatteryCheck100 PRO app from the Google Play store or App Store and set the monitoring in minutes.
Specially designed for recreational vehicles’ secondary batteries, BatteryCheckPRO allows monitoring up to 300A maximum charge or discharge. BatteryCheckPRO is not suitable for engine cranking applications of any type and is not intended for under-vehicle bonnet use. However, you can use it in a Ute tray application in a sealed battery box or in a marine application if the battery area is free from water and salt.
Battery parameters monitored are:
- Voltage and Temperature
- Charge/Discharge Current
- State of Charge (SoC)
- State of Health (SoH)
- Estimated Discharge Time Remaining
- With wireless battery monitor BatteryCheckPRO, you’ll always have enough power to keep your adventures on track.
For low current requirements (up to 100A), we recommend using BatteryCheck100, available to purchase online and via BMPRO-authorised resellers.
Features:
- Communicates with smartphones via Bluetooth
- Easy DIY installation – no mechanical expertise required
- Works with batteries in parallel (7Ah-800Ah battery bank)
- Internal shunt capacity – 300A peak, 240A continuous
Compatible with deep cycle lead acid, AGM, Gel and LiFePO4 batteries
SPECIFICATIONS:
- Input Voltage: 8V - 16V
- Voltage Measurement Range: 8V - 16V
- Voltage Measurement Resolution: <20mV
- Current Consumption: 10mA peak
- Current Measurement Range: ± 300A
- Continuous Current Rating: ± 240A
- Current Measurement Resolution: <150mA
- Operating Temperature: -20°C to 70°C
- Temperature Measurement Range: -20°C to 70°C
- Temperature Measurement Resolution: 1°C
- Monitored Battery Capacity: 7-800Ah
- Humidity: Operating: ≤ 85% RH non-condensing; Non-operating: ≤ 95% RH non-condensing
- Dimensions: 140mm x 65mm x 20mm
- Weight: Approx. 520g
- Installation: Mounted on battery
- IP Rating: IP54
