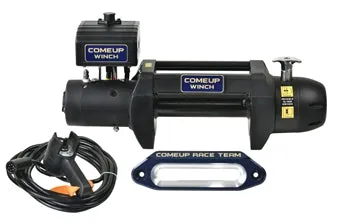

8,000LB 12V DC WINCH,SEAL MADX 8.0S -

PN 296060

8,000 LB Rock Crawling Winch with 25 mpm Line Speed

12V DC severe duty winch rated at 8,000 lb pulling meets or exceeds your expectations.

Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.

16 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 22.5 degree Increments.

Water-proof remote control with thermometric LED indicator w/5 m (17') cord

Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch

The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.

Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.

UPON PURCHASE OF 1 WINCH YOU WILL GET 1 DAMPENER for FREE and 1 set of Gloves for FREE. (Until stocks last! Terms & Conditions Apply).

Specification/Part Numbers:

Part number: PN 296060

Rated line pull: 3,630 kg / 8,000 lb single line

Motor: 5,250 w / 7.0 hp 12V series wound

Gear ratio: 3-stage planetary 67:1

Clutch (freespooling): Rotating ring gear

Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)

Winch construction: Aluminum die cast housings with steel drum

Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)

Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord

Recommended battery : 650 CCA minimum for winching

Battery lead : 1.8 m (6') 2 gauge battery lead

Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)

Mounting : Foot forward or foot down mounting workable

Finish : Matte black powder-coated

Winch weight (including rope) : 28 kg / 61.7 lb

Gross weight : 40.5 kg / 89.1 lb

Box dimension, (L x D x H) : 712 x 209 x 430 mm (28" x 8.2" x 16.9")

Warning
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.
