Lightweight 6061
Aluminium Frame
Memory Foam
Padded Saddle
Tektro Hydraulic
Disc Brake
Shimano Altus
9-Speed Drivetrain

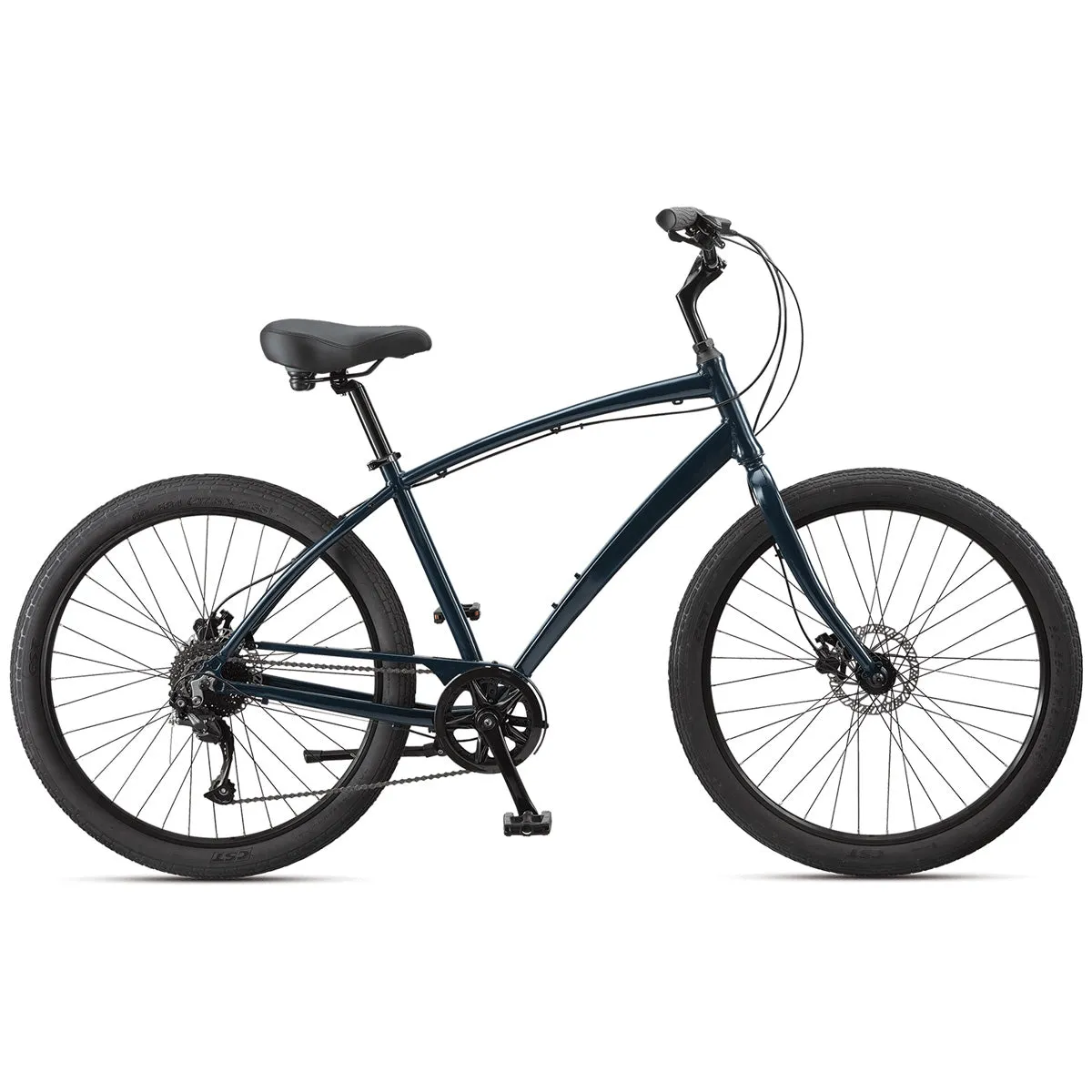

Lightweight 6061 Aluminium Frame
Go faster for less effort with a stiff, lightweight aluminium alloy frame.
Shimano Altus 9-Speed Drivetrain
The 9-Speed Shimano Altus drivetrain provides smooth and reliable gear shifting that will allow you to adapt to any incline.
Comfortable Riding Experience
The super plush saddle features Memory Foam padding for optimum support and maximum comfort.
Strong Stopping Power
Experience smooth and consistent braking with the Tektro HD-M275 hydraulic disc brakes. These high-performance brakes are reliable and built to last.
The Blueprints
An awesome package with the following components:
- A. Lightweight 6061 Aluminium Frame
- B. Tektro Hydraulic Disc Brake
- C. Comfort Saddle with Memory Foam
- D. Shimano Altus 9-Speed Drivetrain
- E. Alloy Double-wall Rims
- F. Hi-tensile Uncrown Fork
Where to ride?
Specification
Technical Specifications
| Frame | 6061 TIG-welded aluminium, Laid-back design with low ride height, alloy kickstand |
|---|---|
| Fork | Hi-tensile unicrown with radiused blades |
| Headset | Internal cup, threaded, 1 1/8” |
| Wheels | Alex DC25 alloy double-wall rims, 36H, Formula alloy QR hubs, 14g black stainless steel spokes |
| Tires | CST Metropolitan Palm Bay, 27.5 x 2.35 |
| Derailleurs | Shimano Altus RDM-2000 |
| Shift levers | Shimano Altus SL-M2010-9R, 9-Speed |
| Chain | KMC Z9 |
| Cassette | Sun Race CSM90-9AW 11-36T |
| Crankset | Forged alloy crank, single 40T chainring, 170mm, with full length chainguard |
| BB Set | Sealed cartridge, 68 x 122.5mm |
|---|---|
| Pedals | Comfort platform with TPE non-slip insert |
| Brakeset | Tektro HD-M275 hydraulic disc brake |
| Handlebar | Comfort hi-rise, alloy 25.4 x 80mm rise x 15 ̊ sweep x 640mm |
| Stem | alloy, 180mm quill x 80mm extension |
| Grips | Kraton comfort w/ clamp |
| Seat Post | Alloy micro-adjust, 31.6 x 300mm, with alloy QR clamp |
| Saddle | Comfort with memory foam, synthetic suede top, burnished side panels and bumper springs |
| Sizes | M: 17”, 19”, 21” S/T: 14”, 18” |
| Color | Dark Blue, Dark Grey, Mint |
Bike Size Guide
| Frame Size Number | 17" | 19" | 21" |
| A - Seat Tube | 43.2cm | 48.26cm | 53.34cm |
| B - Seat Tube Angle | 67° | 67° | 67° |
| C - Head Tube Length | 16cm | 16cm | 16cm |
| D - Effective Top Tube | 59.7cm | 62.7cm | 64.8cm |
| E - Chainstay Length | 48.5cm | 48.5cm | 48.5cm |
| F - Wheelbase | 111cm | 114cm | 116.2cm |
