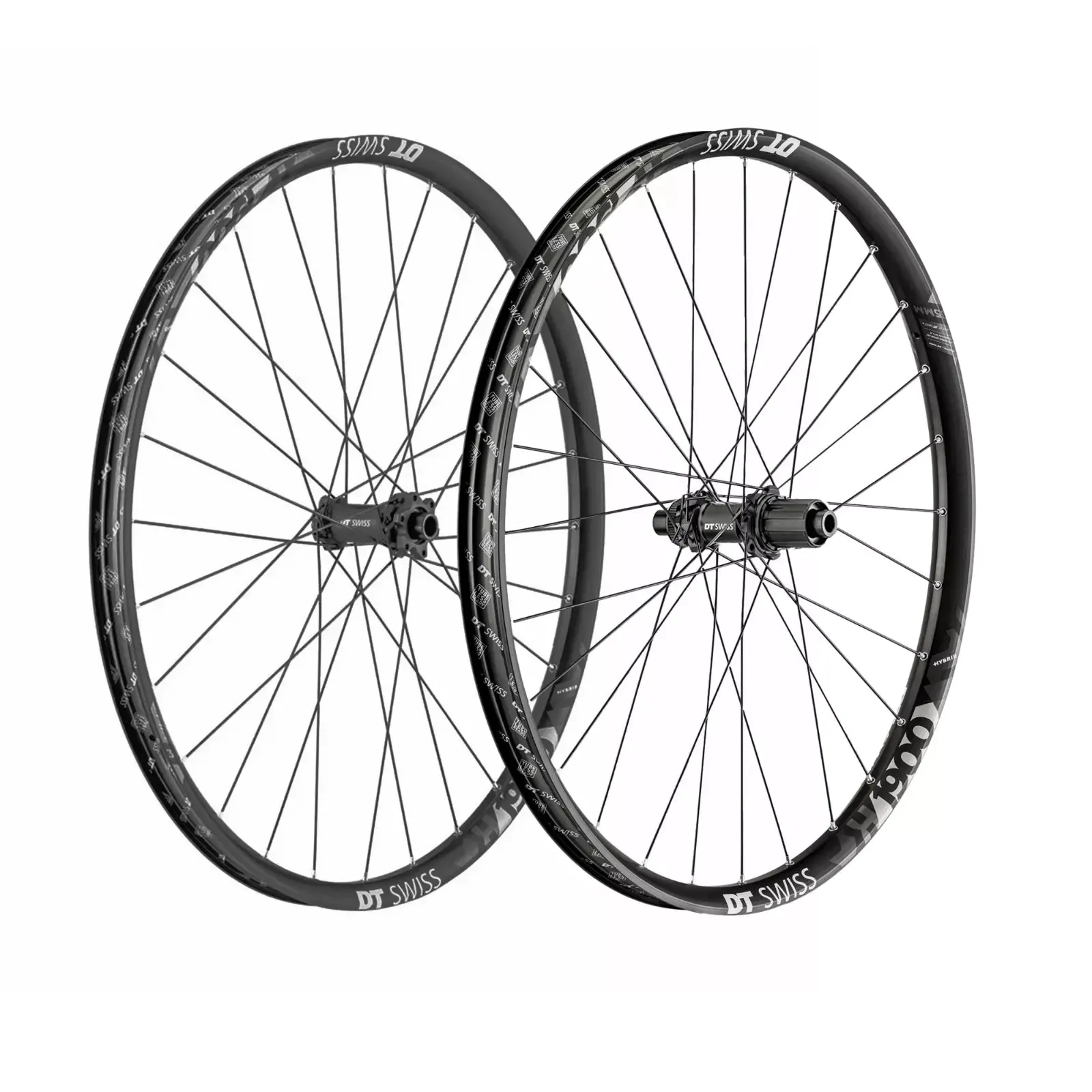

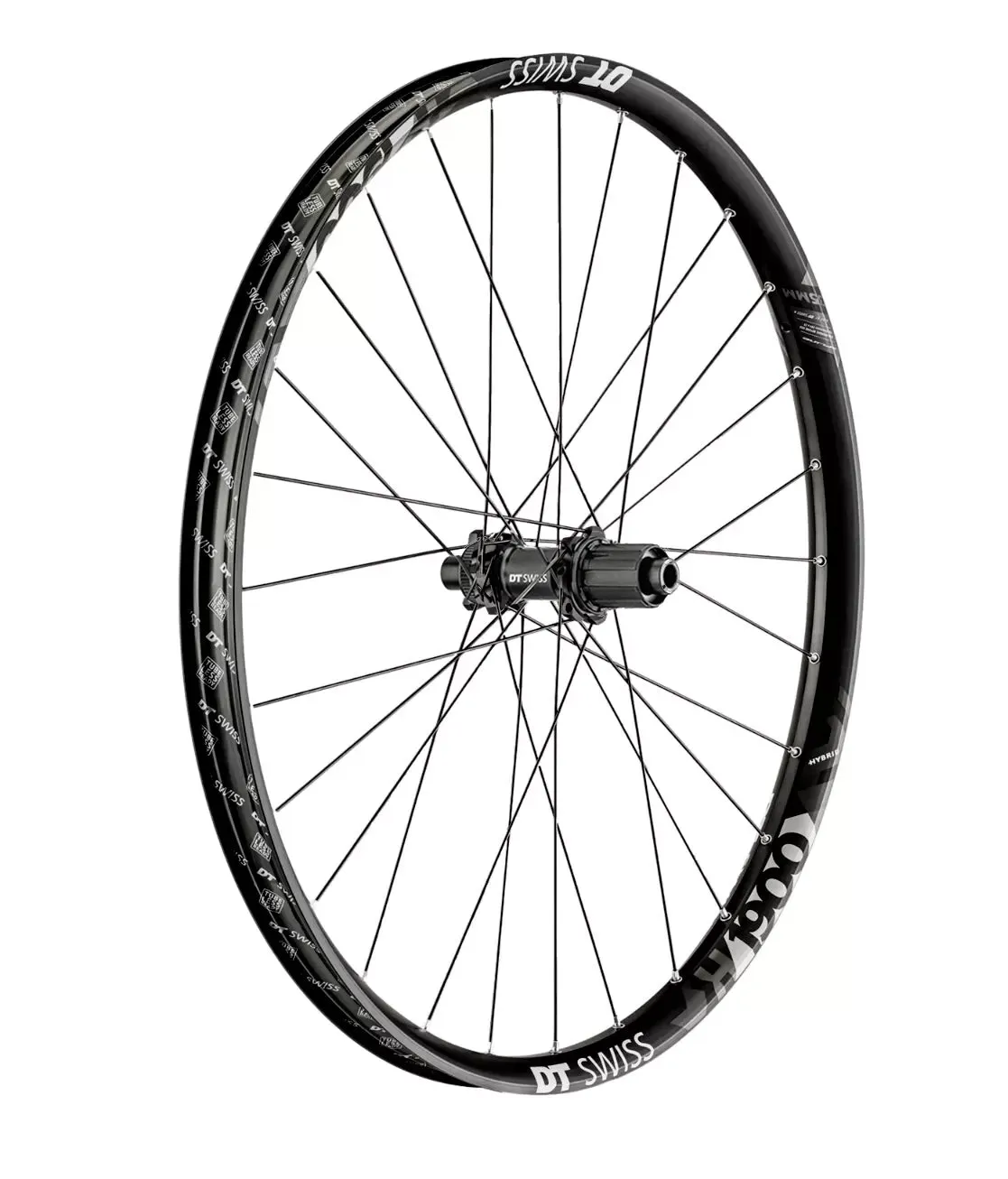

DT Swiss H 1900 Spline 27.5 Hybrid E-MTB Boost Wheelset - 35mm

"Get your flow!" – with the H 1900 Spline 35 hybrid front wheel from DT Swiss, made for your e-mountain bike!

DT Swiss is using the hashtag #missionhybrid to share their mission to meet all the requirements that e-MTB riders place on their components. High torques and a significantly higher system weight put much more strain on your wheels on demanding up- or downhill tracks than traditional, non-assist mountain bikes. Thanks to many years of experience in wheel building and modern test and analysis methods, DT Swiss has developed special hybrid components that are much more durable and robust than traditional MTB components – without suffering from overweight.

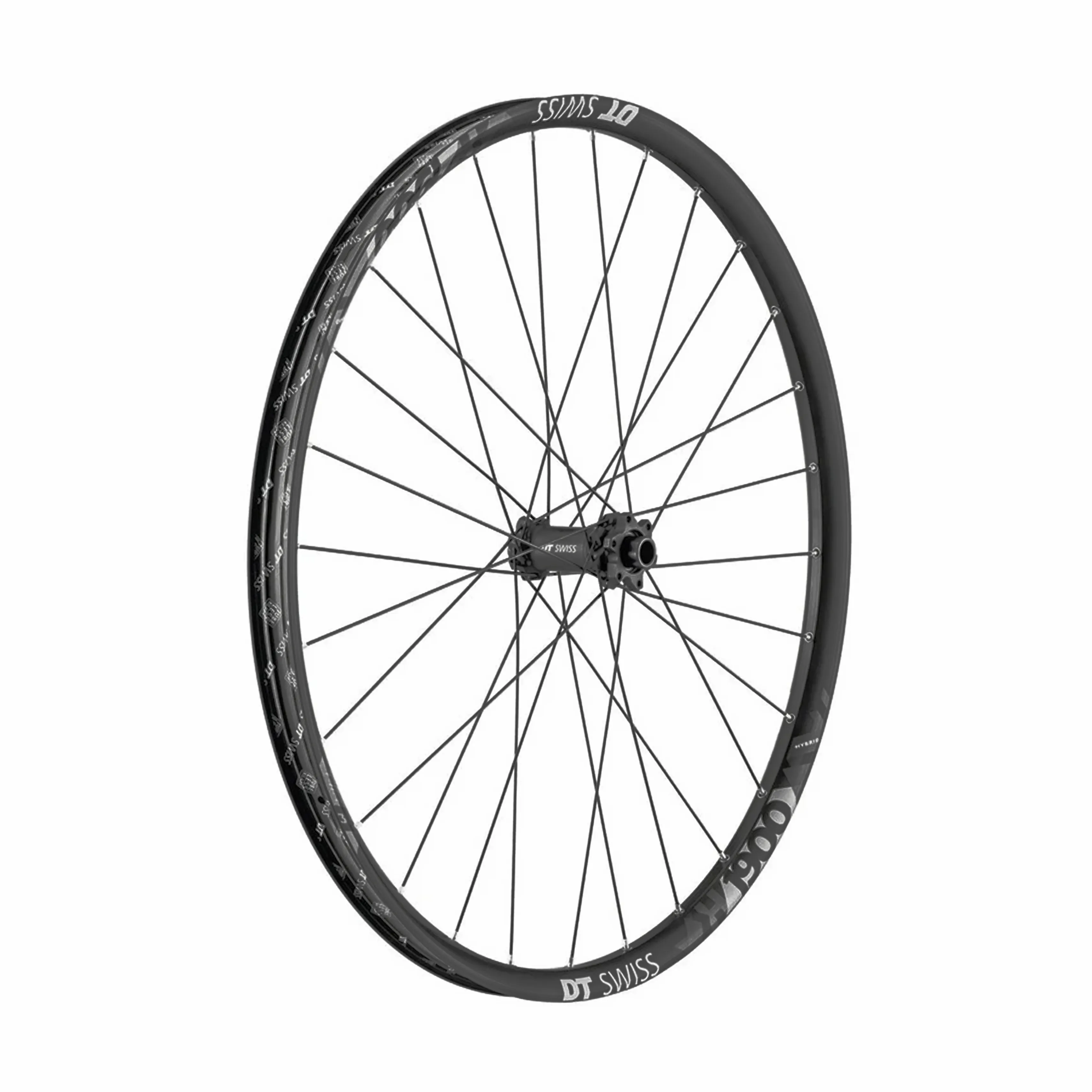

The front H 1900 Spline 35 system wheel is the perfect entry into the world of hybrid wheels by DT Swiss. It even feels at home on rough terrain and is always up for new adventures thanks to a reliable Swiss precision hub, strong spokes and a robust, lightweight rim. The full 35 mm inner width creates a large tyre volume and harmonises perfectly with the Plus tyres that are very popular on e-mountain bikes. An inner rim width of 30 mm makes for a large tyre volume, which helps you find the best grip – whether on loose gravel or on a root-filled traverse, up- or downhill!

Rim:

• Wheel size: 27.5" / 650B

• Rim material: aluminium

• Rim type: clincher

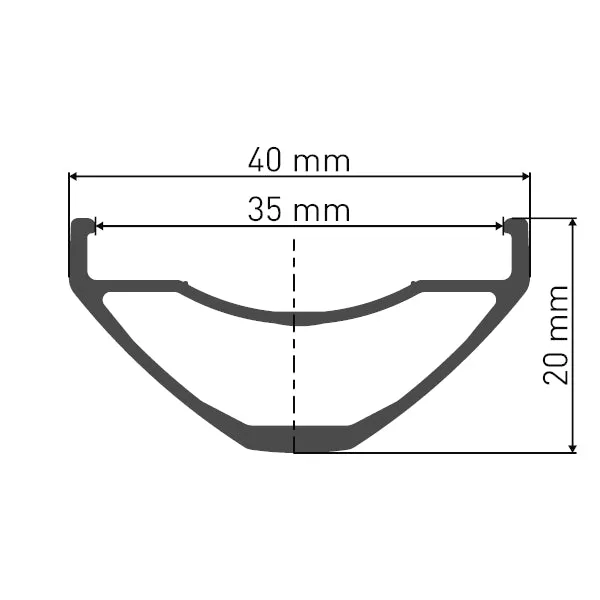

• Rim depth: 20 mm

• Rim width: 40 mm

• Inner rim width: 35 mm

• ETRTO: 35 - 584

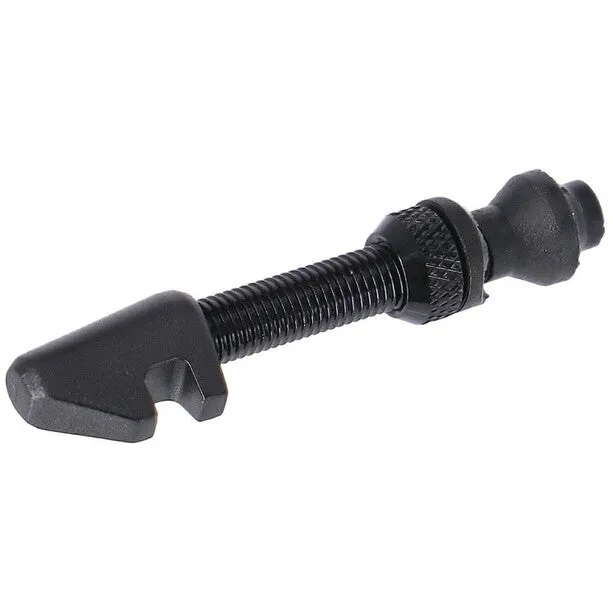

• For Presta valve (Ø 6.5 mm)

• Tubeless ready

• Suitable for tyre widths: 2.1" - 4.0"

Spokes and nipples:

• Spoke type: DT Swiss hybrid 1 straight pull
• Number of spokes: 28 pieces

• Lacing: 3-cross

• Nipples: DT Swiss ProLock® Squorx ProHead alu

Hub:

• 370, Spline®, hybrid, 2 sealed cartridge bearings

• For centrelock disc brakes
• Aluminium hub body

• Freehub: Shimano HG

• Centre lock bolt brake rotor mount

• Front hub spacing: 15 x 110 mm (BOOST thru axle)

• Rear hub spacing: 12 x 148mm (BOOST thru axle)

• Weight: 1029g (front/rear)

• ASTM classification: 4 (for extremely rough, blocked terrain with jumps/drops of up to 121 cm)

• Max. system weight: 150 kg (cyclist, bike, gear and luggage)
