SPECIFICATIONS
Voltage: 12V
USB and SD Card: Support USB and SD Card Function(Optional)
Special Functions: U-Disk, SD Card , Clock Display, AUX , Charing Function
Special Features 3: Support IR Remote Control(No Battery)
Special Features 2: USB Function, Music Player, FM Radio Car
Special Features: Radio Tuner
Special Features: Hands-Free, Mp3 Player
Resolution: 240*320 MP3 Player
Radio Response Bandwidth: 87.5-108 MHZ radio car
Product Name: 1 Din Bluetooth SD USB Autoradio
Power amplifier chip: TDA7388 Radio Tape Recorder
Placement: In-Dash
Out Power: 60W*4 Autoradio - mini-jsd-520-12V
Origin: Mainland China
OSD Language: English
Model Number: Bluetooth Car Stereo
Model Name: jsd-520 1 Din Bluetooth Radio
Material Type: Aluminum Plastic 1 Din Bluetooth SD USB Auto Radio
Item Weight: 0.5kg
Item Type: Auto Radio 1 din
Item Size: 178 MM (Width)*50 MM (H)*75 MM (D)
Functions: Radio Tuner
Features: Connected to Your Phone by Bluetooth(0000)
Display Size: 2.5"
Certification: CE
Brand Name: podofo
Audio format: MP3/WMA/WAV/FLAC
AUX Cable: Support (Not Include the Aux Cable)
Podofo Autoradio 1 din Car Radio JSD-520 Car Stereo Receiver Bluetooth Audio MP3 Player Recorder USB SD AUX input oto teypleri Auto Radio
Not support Japan frequency
JSD-520 Not Support Fast Charging.
Car Radio Stereo Player Bluetooth Phone AUX-IN MP3 1 Din car electric 12V Car Audio Autoradio radio cassette player auto tapes
autoradio 12V Car Radio Bluetooth 1 din car stereo Player Phone AUX-IN MP3 FM/USB/radio remote control For phone Car Audio
Bluetooth V2.0 JSD-520 Stereo Autoradio Car Radio 12V In-dash 1 Din FM Aux Input Receiver SD USB MP3 MMC WMA Car audio Player
Podofo Car Radio Stereo Player Digital Bluetooth Car MP3 Player 60Wx4 FM Radio Stereo Audio Music USB/SD with In Dash AUX Input
Special Function :FM Receiver, BluetoothRadio, Hands-free calls, MP3 Player, SD Card Reader,USB flash disk
Decoding chip:TY3510
Screen type:LCD-VA
Radio Band:FM
Radio Chip:Integrated chip
Power output:4*60W
Work temperature:-10℃~60℃
Bluetooth name:CAR BT
Power amplifier chip:TDA7388
Radio frequency:87.5~108MHz
TF Card: SD big card(Class 10 4 G-32G)
GPS Card:Not Support
USB version: 2.0
Car logo change:Not Support
Audio format:MP3/WMA/WAV/FLAC
Factory setting keyword:Not support
Video format:Not support
Picture format:Not support
RCA port:4 channel audio output

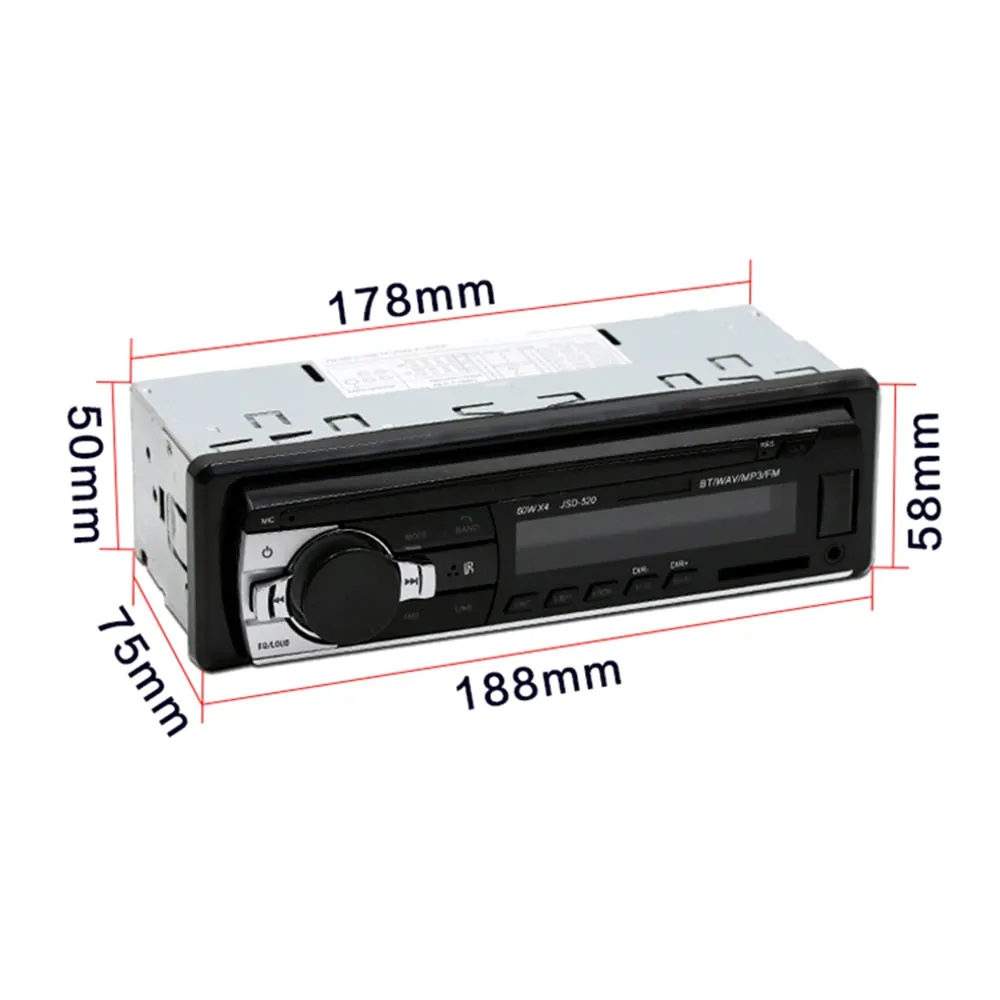

Include the installation size of the metal frames (mm): 182(width)*52(height)
Body Size: 178MM (Width)*50MM (H)*75MM (D)
Shape Size: 188MM*58MM (H)

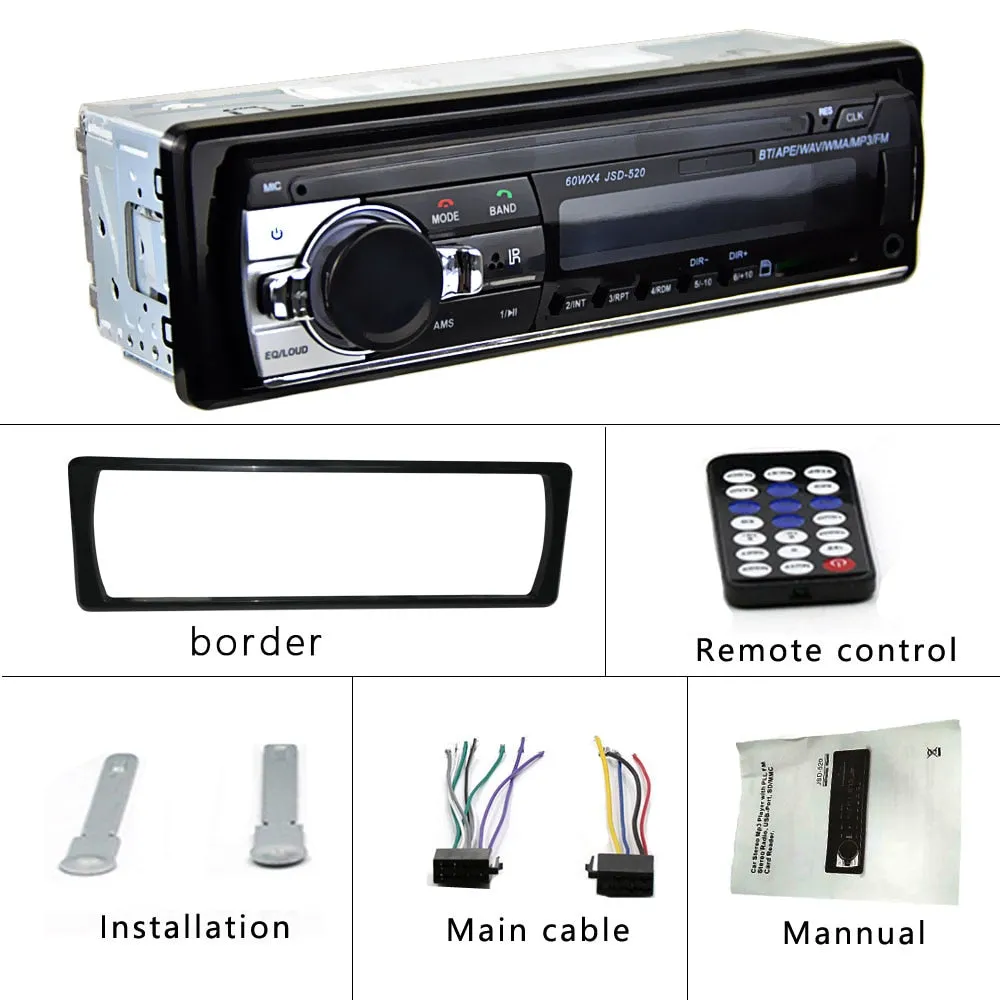

Package Include:
1 x Car Stereo FM Receiver
1 x IR Remote Control (Without battery)

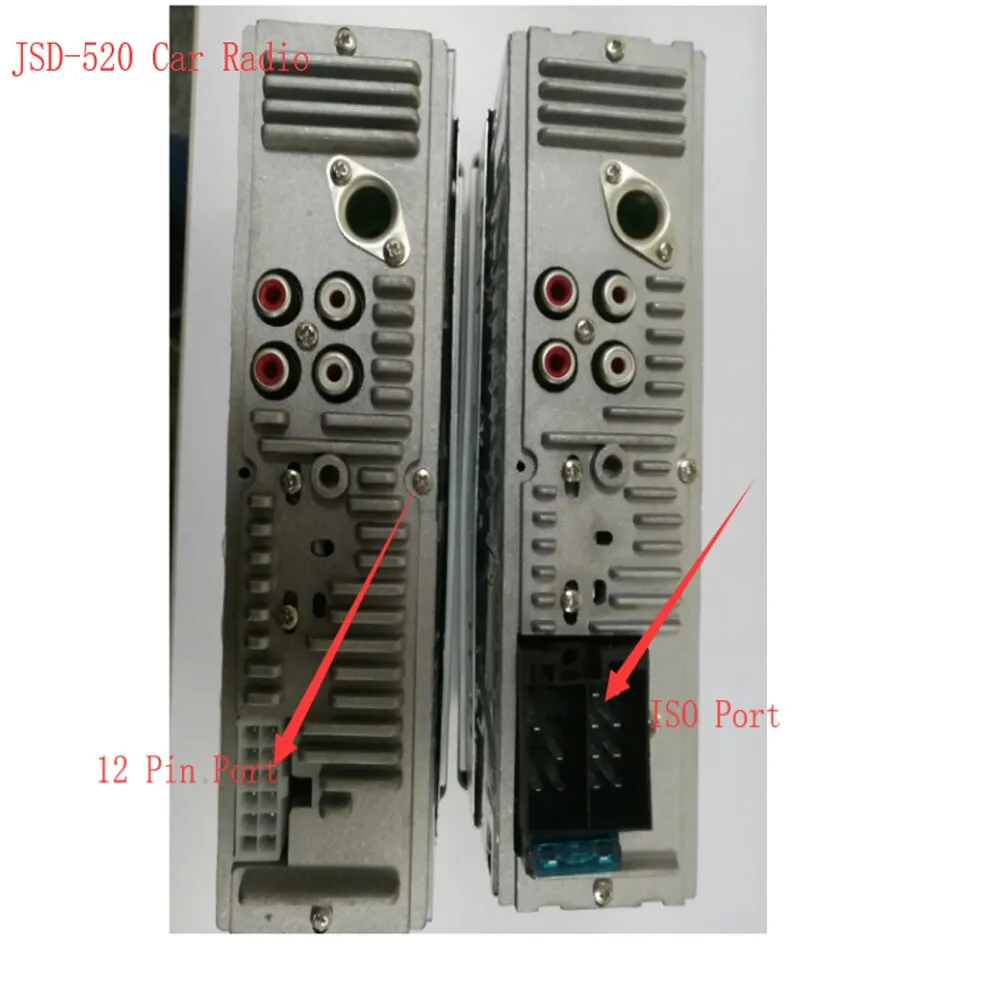

2 x Power Cables( ISO Or 12 Pin Port)
1 x User Manual
2 x Key

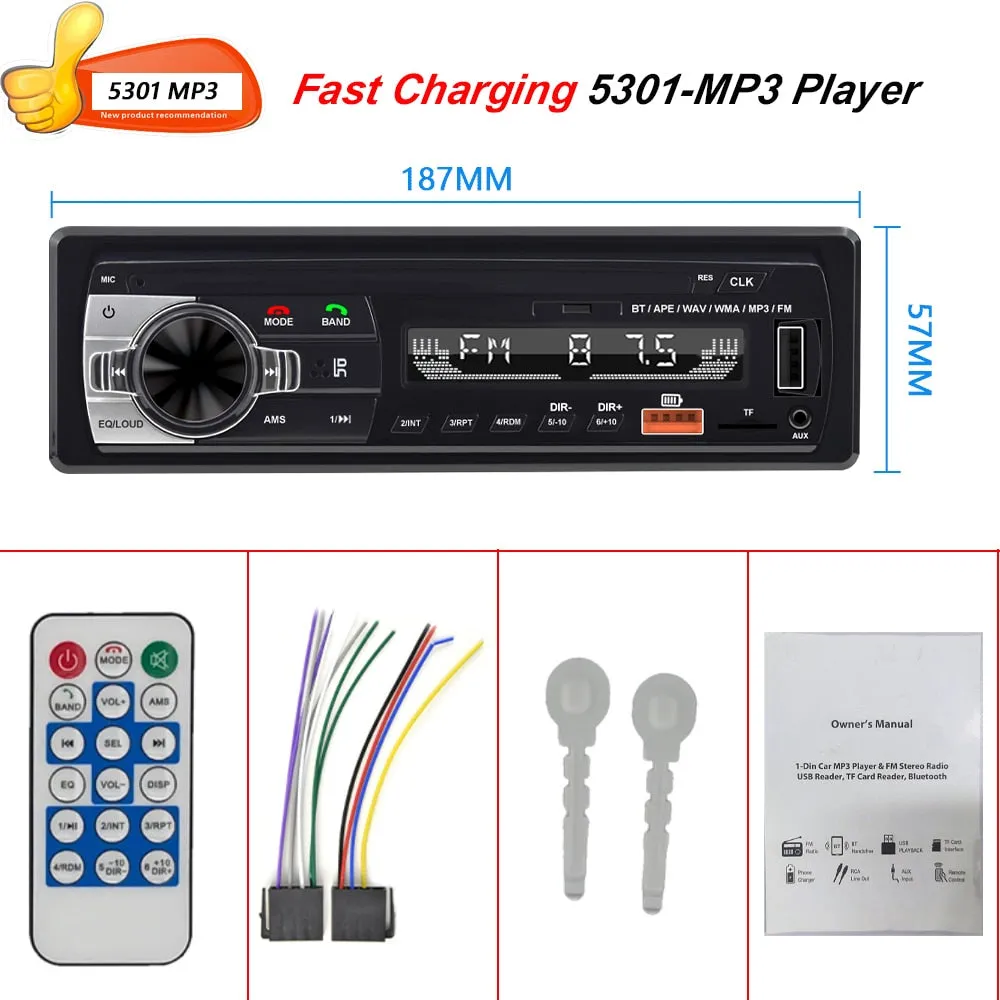

Podofo Car Radio Audio 1din Bluetooth Stereo MP3 Player FM Receiver 60Wx4 With Remote Control AUX/USB/TF Card In Dash Kit
Specifics
Voltage:DC 12V
Decoding chip:Jieli4900
Screen type:LCD-VA
Radio Band:FM
Radio Chip:Integrated chip
Power output:45W
Work temperature:-10℃~60℃
Bluetooth name:CAR BT
Power amplifier chip:TDA7377
Radio frequency:87.5~108MHz
TF Card: TF card
GPS Card:Not Support
USB version: 2.0
Fast charge: support
Colorful lights: red light
Car logo change:Not Support
Audio format:MP3/WMA/WAV/FLAC
Factory setting keyword:Not support
Video format:Not support
Picture format:Not support
RCA port:4 channel audio output
Packing List
1 x Car Stereo Receiver
1 x Remote Control
2 x Power Cables
1 x User Manual
2 x Key
FAQ:(Car Radio )
Q1.Why the car radio can't turn on ?
1>Please check the Voltage of car radio :DC 12V
2>When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
3>Replace the same type of insurance to test the car radio.
Note:Please msut use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.
Q2.Why the car radio will show time after we turn off this?
>That time clock is a function for the car radio ,that can't be removed.In fact that car radio had been turn off,it save the time are more convenience for people to see,
>If you didn't need this,you need to unplug the power positive and negative.
Q3.Why haven't sound in car radio when playing the music?
>1.When you are not using our original audio cable, please check if your audio cable is suitable for our camera.
>2.Please check if there is any collision between the lines.
>If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is also no sound when the power cord touches the speaker cable.
>If the problem still here,please use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound.
Q4.Why can't search FM?
>1. No radio antenna inserted.
>2. Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.
>3.The signal of your location is not good. Please go to a better place to test again.
>4.The radio antenna on the car is broken/no effect; please replace the radio antenna and test again;
Q5.Why can't connect the Bluetooth of car radio?
>1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
>2.Please try to use another mobile phone to test this function.All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.
