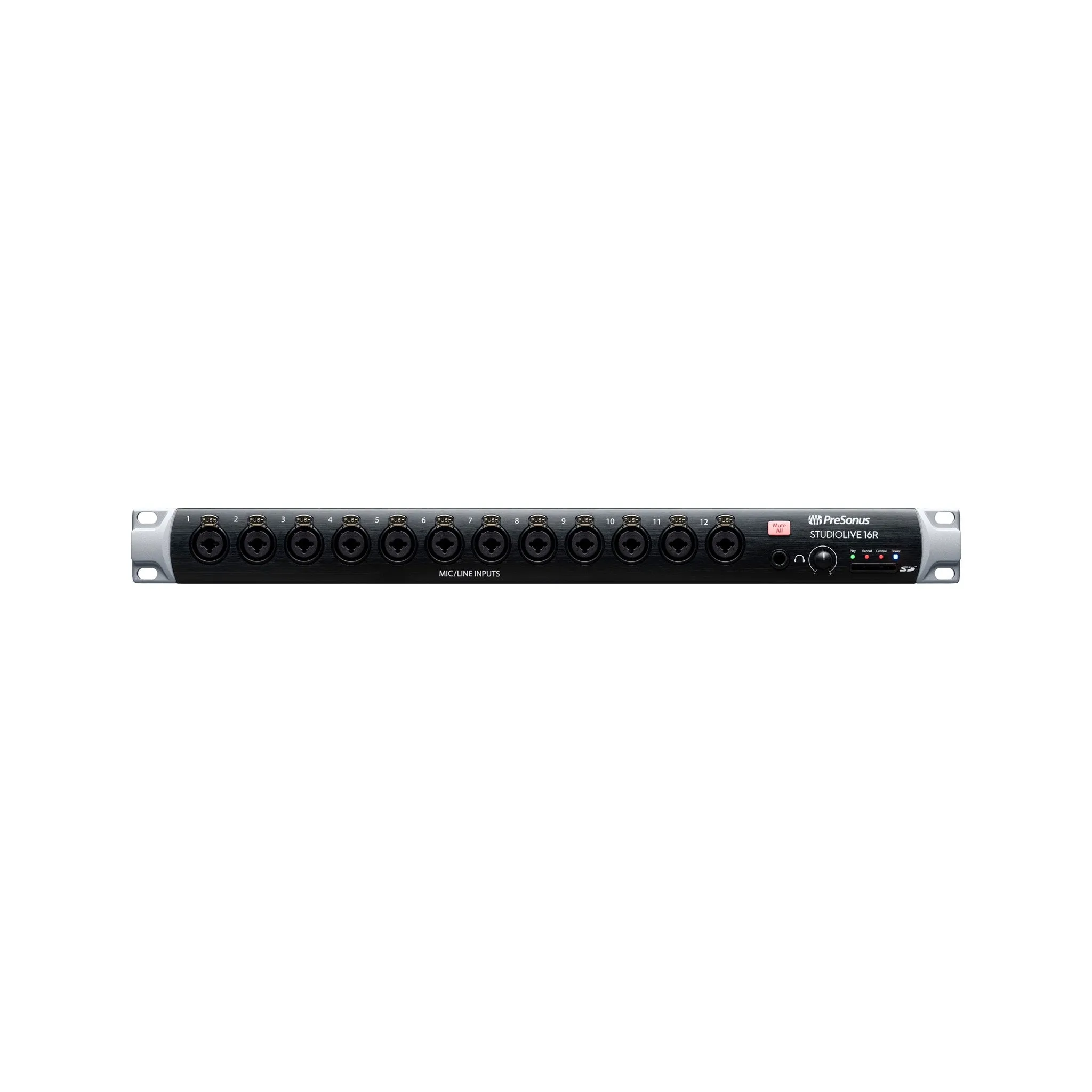

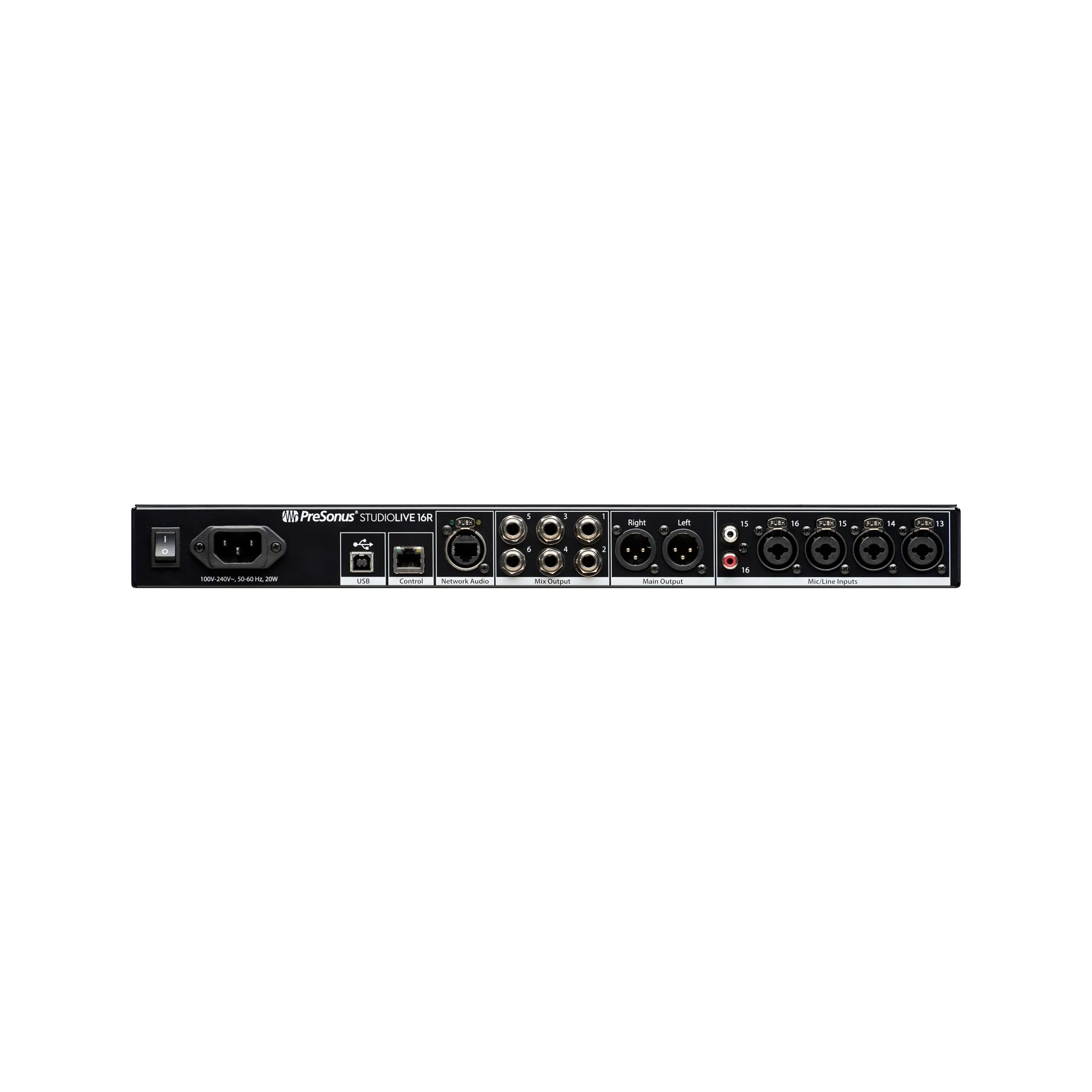

The StudioLive® 16R digital mixer is four audio tools in a single rackspace. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 36-channel (18x18) USB audio interface with modelled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
Features:
- Powered by the new single-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 18 input-channel digital rack mixer with 16 digitally controlled XMAX mic/line inputs, 2 FLEX FX returns, 10 mix buses, 6 FlexMixes (Aux, Subgroup, Matrix), 2 dedicated FLEX FX buses, Stereo Main bus
- 130 simultaneous processors: HPF, Gate/Expander, Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
- 31-band graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- 6 DCAs to control groups of channels
- 36-channel (18x18) recording over USB
- Onboard stereo SD recorder with true Virtual Soundcheck mode
- AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers, and more
- Monitor Mix and Stage Box modes for use with StudioLive® Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
- Remote control every mix function from your computer, iPad®, or Android™ tablet with UC Surface (included)
- Put your musicians’ monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
- Capture® 3.0 multitrack software included
- Advanced Studio One® integration (Studio One Artist Included)
- Ableton® Live Lite included
Specifications:
- Voltage: 100-120V
- Connection Type: IEC
- Rack Units: 1U
- Mic Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Phantom Power: 48 VDC, Switchable Per Channel (±2 VDC)
- Max. Line Inputs Level: 12 dBu, ±0.5 dBu
- Bit Depth: 24
- Sample Rate: 44.1, 48, 88.2, 96, 176.4, or 192 (kHz)
- System Requirements: Windows 10 20H1 (64-bit only) or Windows 11 (64-bit only), macOS version 10.14 or later, 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
- Includes: One - PreSonus StudioLive 16R Digital Rack Mixer, USB Cable, IEC Power Cord, Product Registration and Software Authorization Card, Quick Start Guide, Safety and Compliance Guide
- Dimensions: 19" (W) x 12” (D) x 1.75” (H)
- Weight: 3.9 kg
