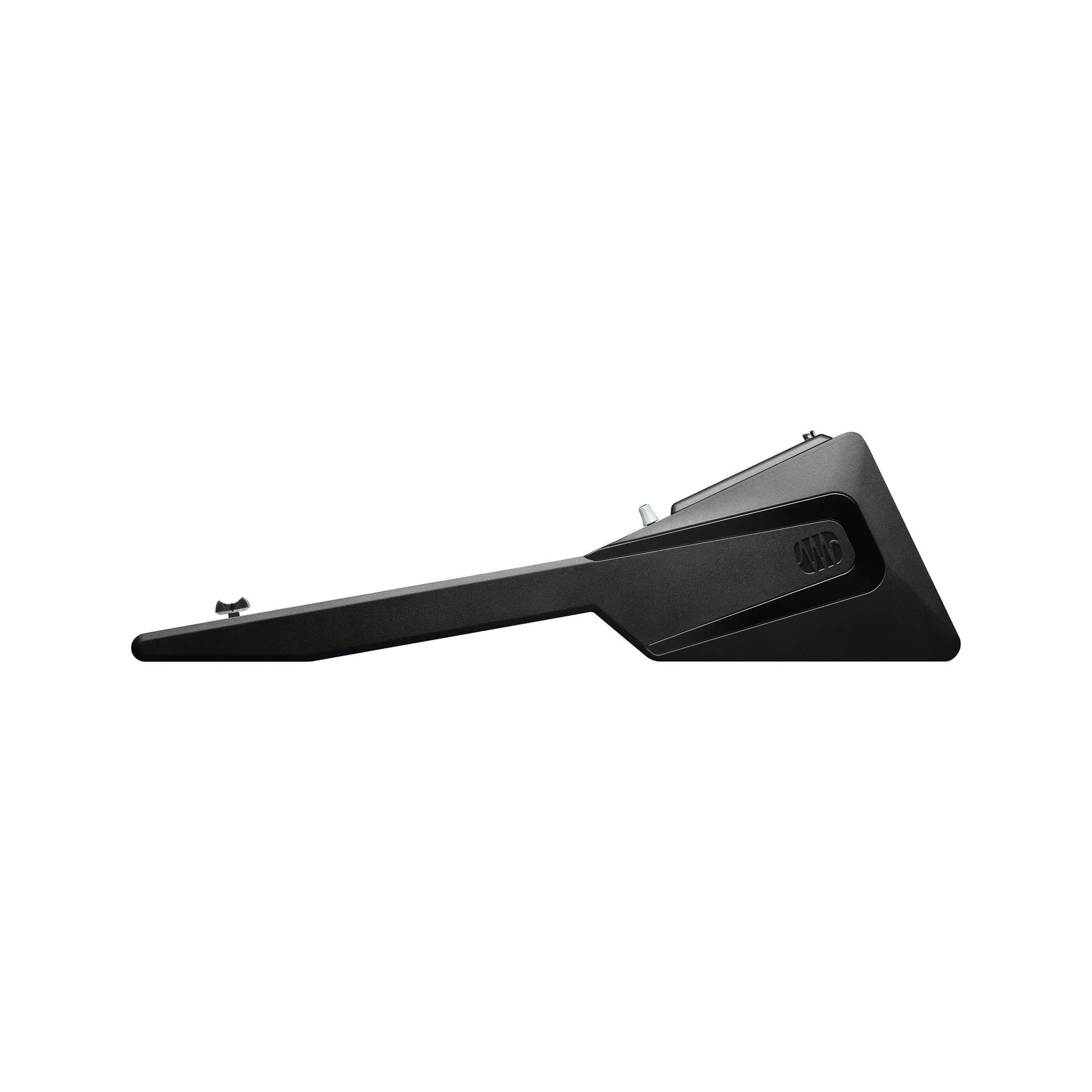

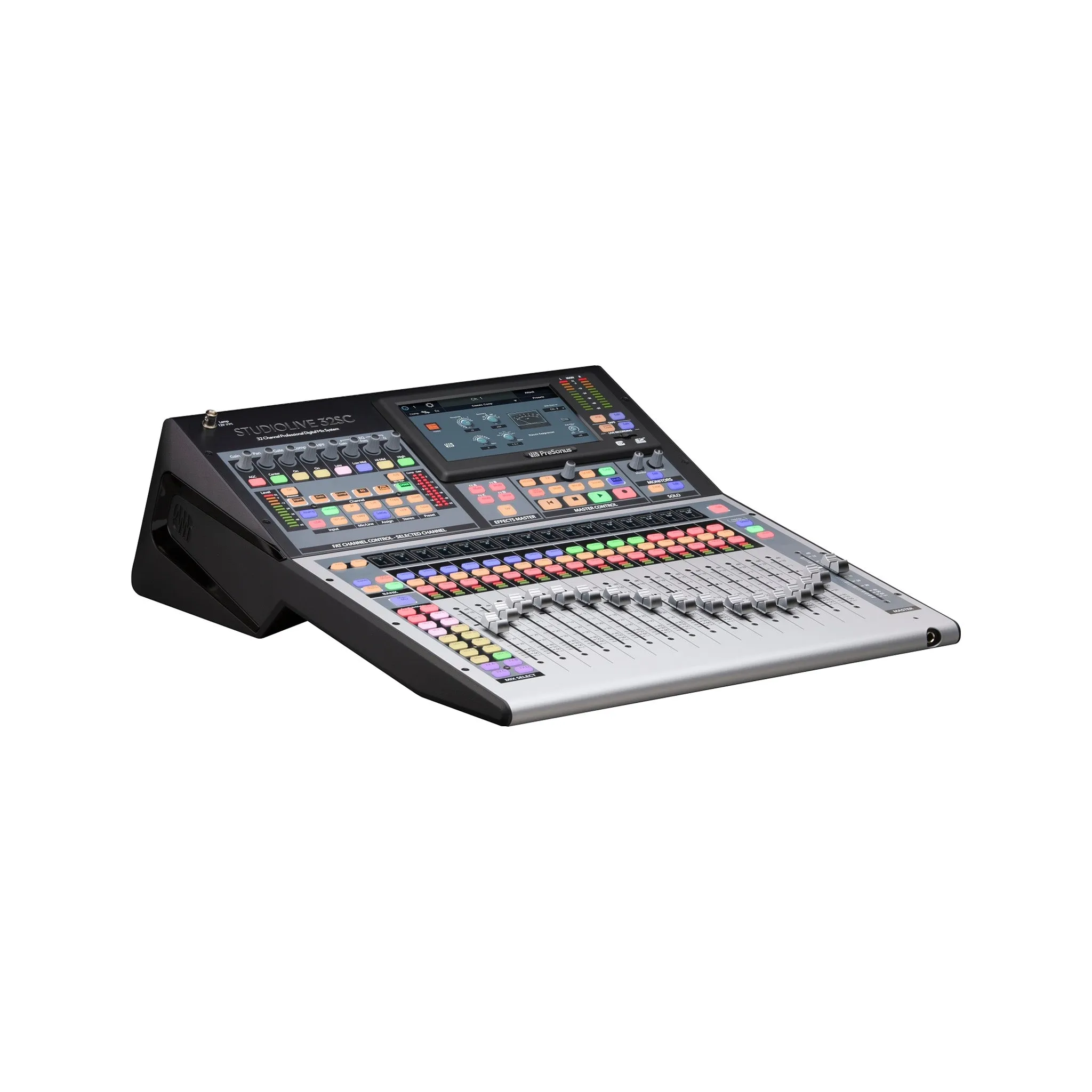

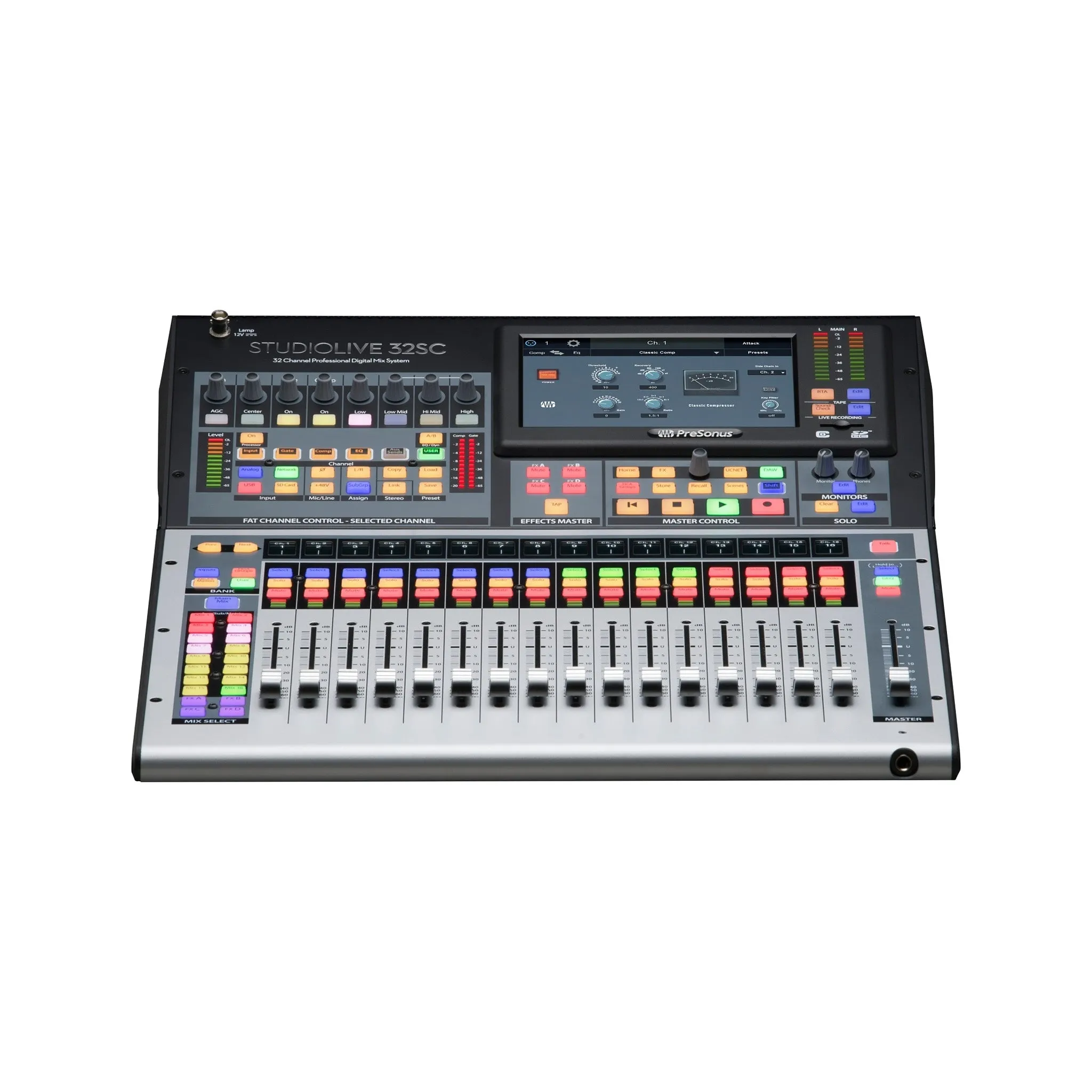

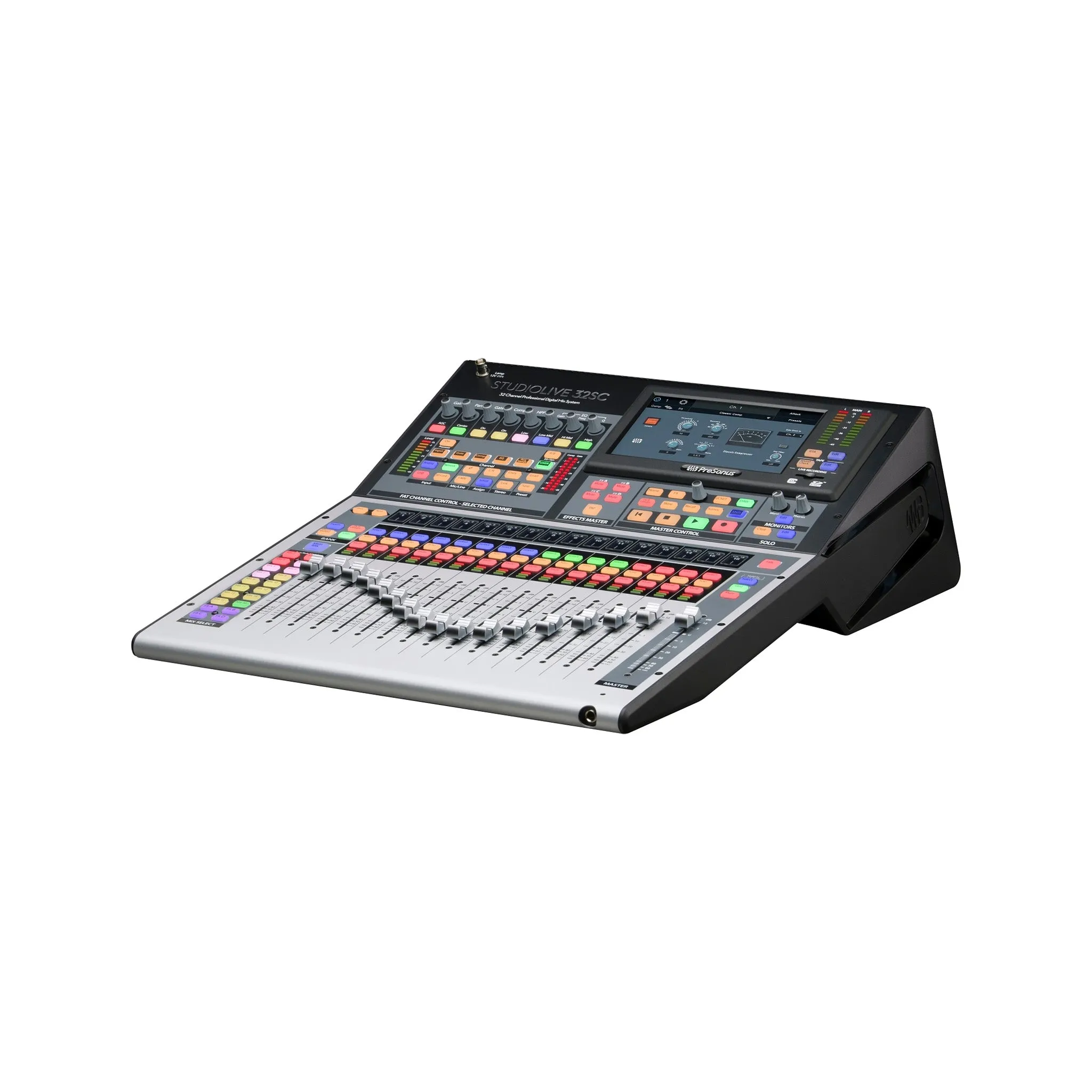

A 32-channel powerhouse packed inside a portable, rack-mountable frame, the StudioLive 32SC is a compact digital mixer that can compete with its bigger brothers, particularly when you consider its price. Thanks to AVB, it's easily expandable - readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for additional inputs. The 32SC's 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes - your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage-style EQ and classic compression options on every input channel and output bus.

The 32SC also ships with PreSonus Capture® recording software, which can be run directly on your mixer or Windows or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.

Features:

• Portable, rack-mountable, and flexible digital console for installed sound, mobile, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
• Fully recallable 32-channel digital mixing console
• Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
• Built-in 128-channel (64x64) USB interface - the most of any mixer
• Onboard multitrack SD Card recorder with true Virtual Soundcheck
• 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture®

Specifications:

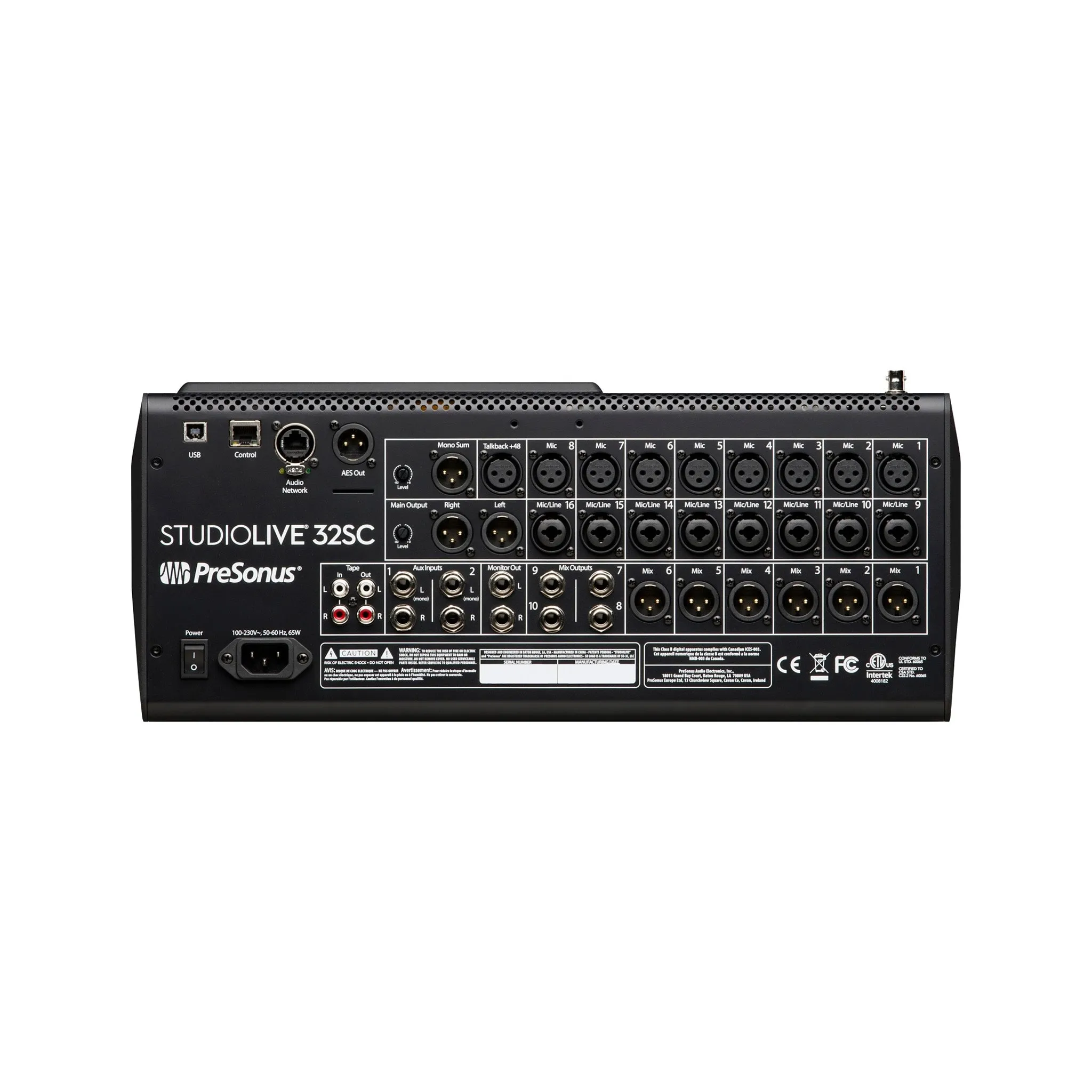

• Mic Preamp: XLR Female, balanced, 20-20 kHz frequency response, 48 VDC phantom power, switchable per channel
• Line Inputs: 1⁄4” TRS Female, balanced, 20-20 kHz frequency response
• Tape Inputs: RCA Female, unbalanced (stereo pair)
• XLR Outputs: XLR Male, balanced, 24 dBu max output level
• Line Outputs: 1⁄4” TRS Female, balanced, 18 dBu max output level
• Tape Outputs: RCA Female, unbalanced (stereo pair), 18 dBu max output level
• Headphone Output: 1⁄4” TRS Female, active stereo, 100 mW/ch. @ 60Ω load max output, 20 Hz – 20 kHz frequency response
• Power: IEC, 85W
• Includes: PreSonus StudioLive 32SC, 1 meter USB cable, 1 meter CAT6 Ethernet cable, StudioLive Series III Quick Start Guide, IEC power cord
• Dimensions: 18” (W) x 23” (D) x 7” (H) / 457 mm (W) x 584 mm (D) x 179 mm (H)
• Weight: 10.5 kg / 23 lbs.
