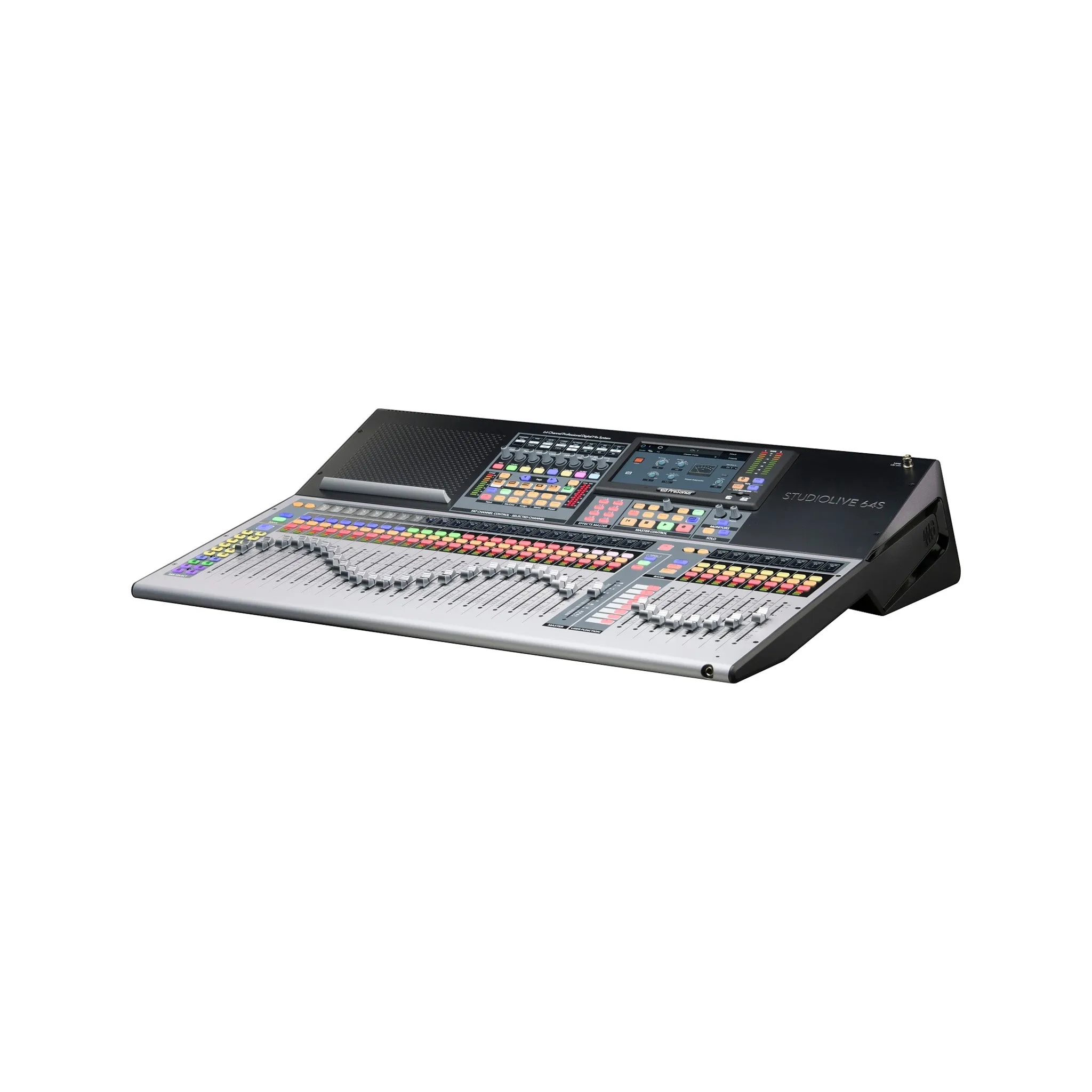

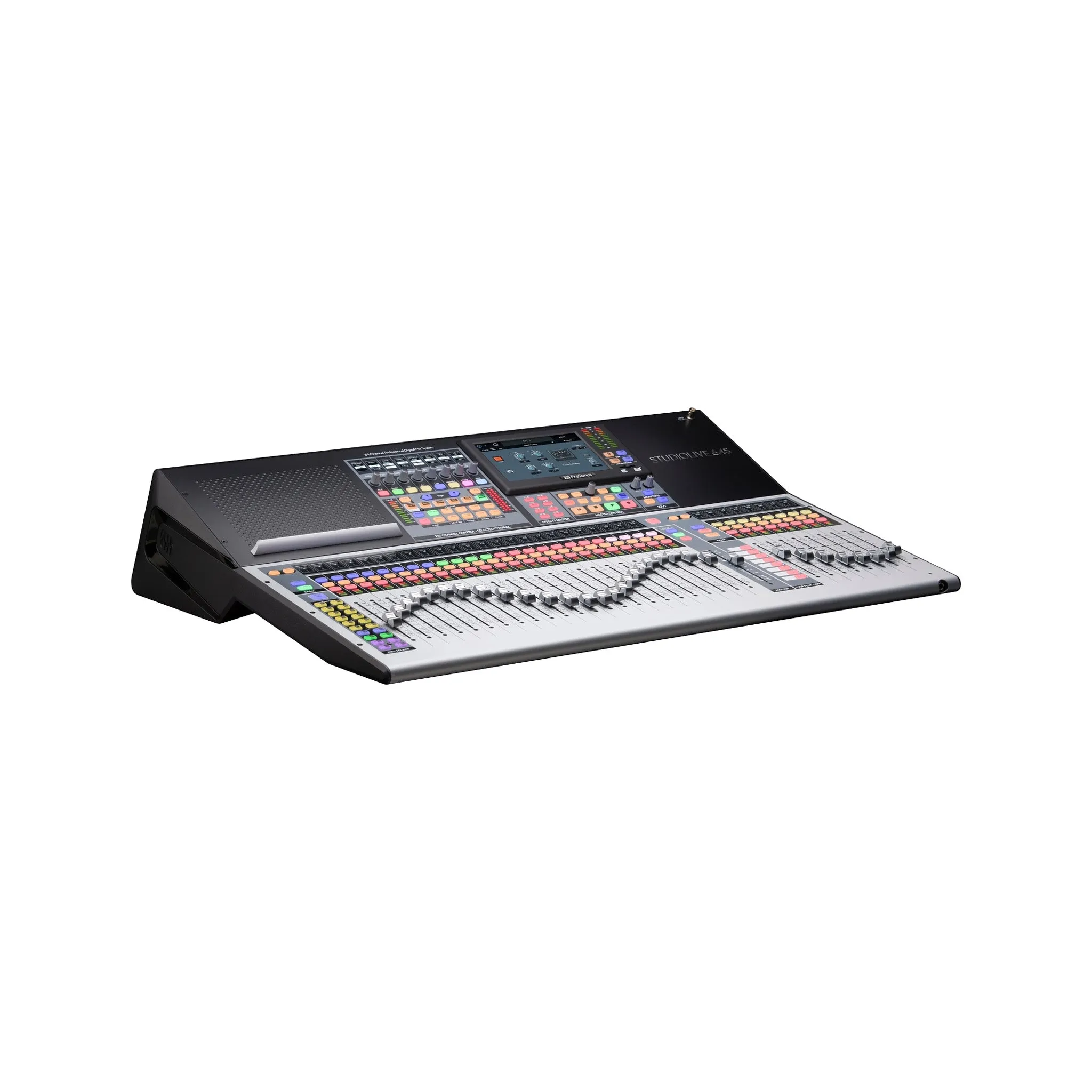

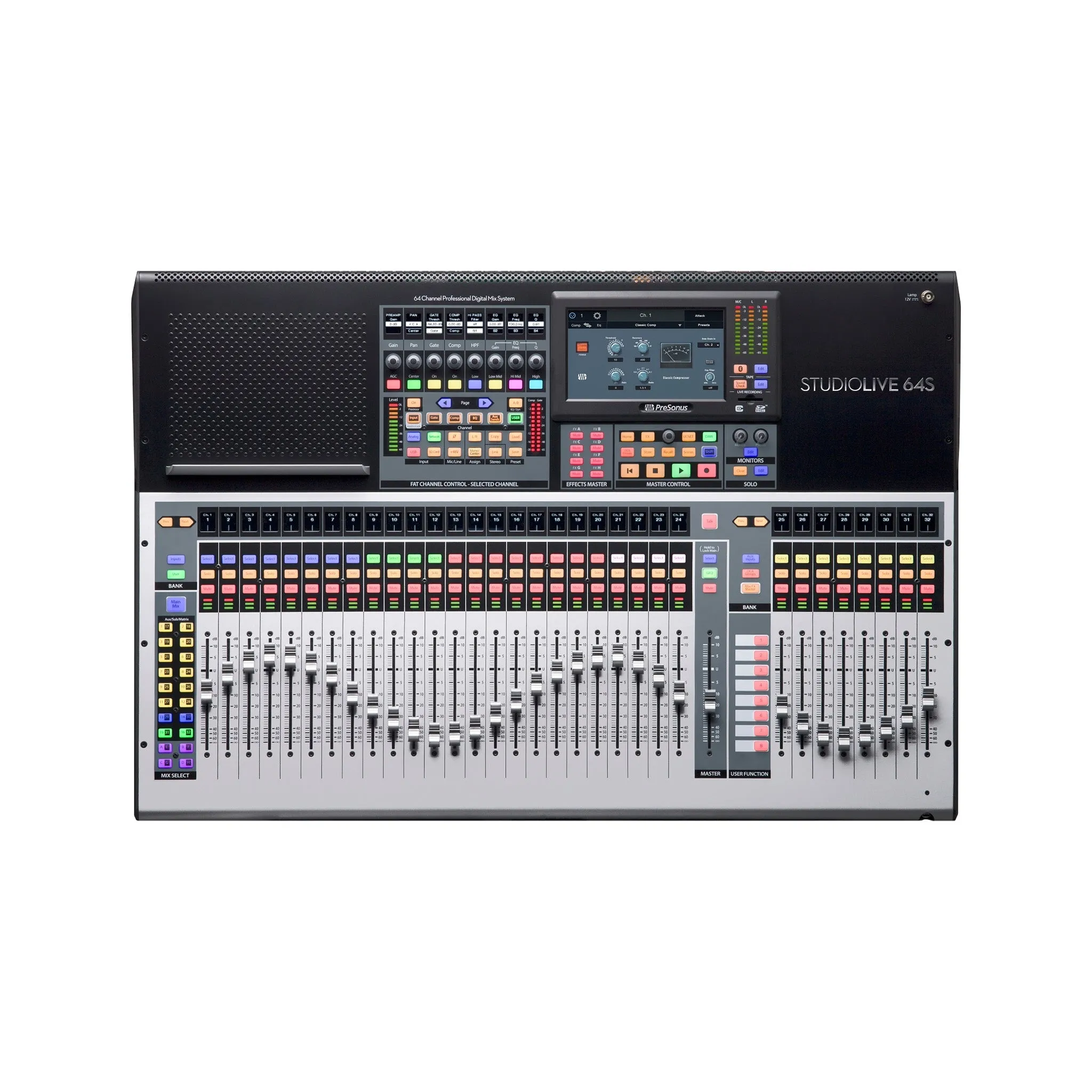

With the 64-channel StudioLive® 64S and a full suite of integrated software, PreSonus® delivers the most powerful and flexible digital console available for installed sound, touring, and recording - and the best value. Powered by the PreSonus quad-core FLEX DSP Engine, no other mixer can match its 128-channel (64x64) USB recording, 76 mixing channels, 43 buses, and an astounding 526 processors. Features such as password-protected user profiles for restricting feature access and mixer scenes organized by project, make the StudioLive 64S ideal for installed sound. Thanks to built-in AVB networking, the StudioLive 64S integrates with stage boxes, personal monitor mixers, switches, and more. Managing 76 total inputs is easy with 32 FlexMixes and 24 DCA groups. The Fat Channel processing section offers expandable plug-ins with vintage-style EQ and compression options on every channel and output bus.
Features:
- The most powerful and flexible digital console available for installed sound, touring, and recording with a quad-core FLEX DSP Engine powering 526 simultaneous processors
- Fully recallable with touch-sensitive motorized faders
- Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and the SW5E AVB switch
- Built-in 128-channel (64x64) USB interface - the most of any digital mixer on the market
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- 32 FlexMixes (aux mixes, subgroups, or matrix mixes)
- FLEX FX multieffects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
- Complete professional solution: suite of integrated software, including Studio One® Artist DAW

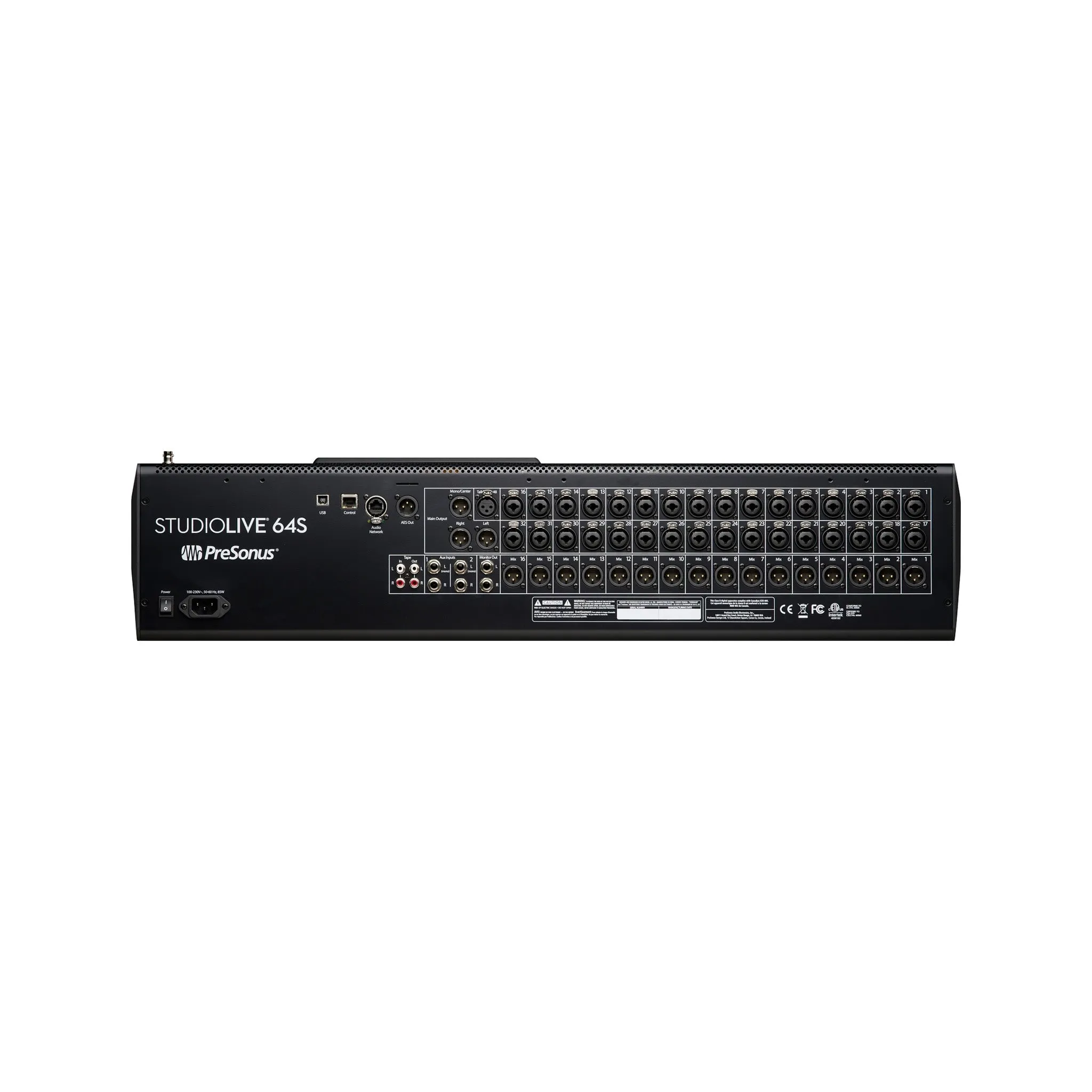

Specifications:
- Mic Preamp: XLR Female, balanced, 20-20 kHz frequency response, 48 VDC phantom power, switchable per channel
- Line Inputs: 1⁄4” TRS Female, balanced, 20-20 kHz frequency response
- Tape Inputs: RCA Female, unbalanced (stereo pair)
- XLR Outputs: XLR Male, balanced, 24 dBu max output level
- Line Outputs: 1⁄4” TRS Female, balanced, 18 dBu max output level
- Tape Outputs: RCA Female, unbalanced (stereo pair), 18 dBu max output level
- Headphone Output: 1⁄4” TRS Female, active stereo, 100 mW/ch. @ 60Ω load max output, 20 Hz – 20 kHz frequency response
- Power: IEC, 85W
- Includes: PreSonus StudioLive 64S, 1 meter USB cable, 1 meter CAT6 Ethernet cable, StudioLive Series III Quick Start Guide, IEC power cord
- Dimensions: 32.5” (W) x 23” (D) x 7” (H) / 826 mm (W) x 584 mm (D) x 179 mm (H)
- Weight: 16.9 kg / 37.2 lbs
