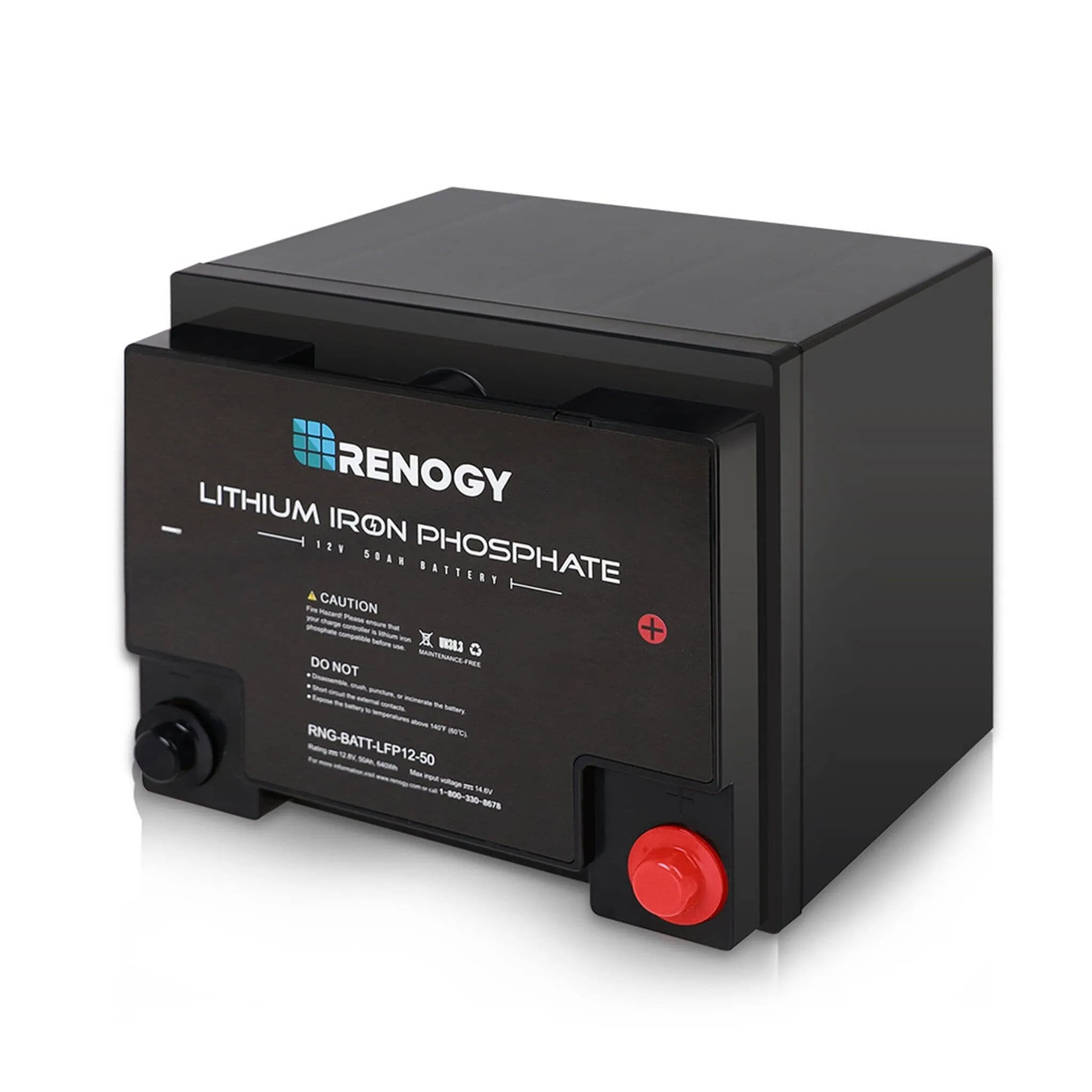

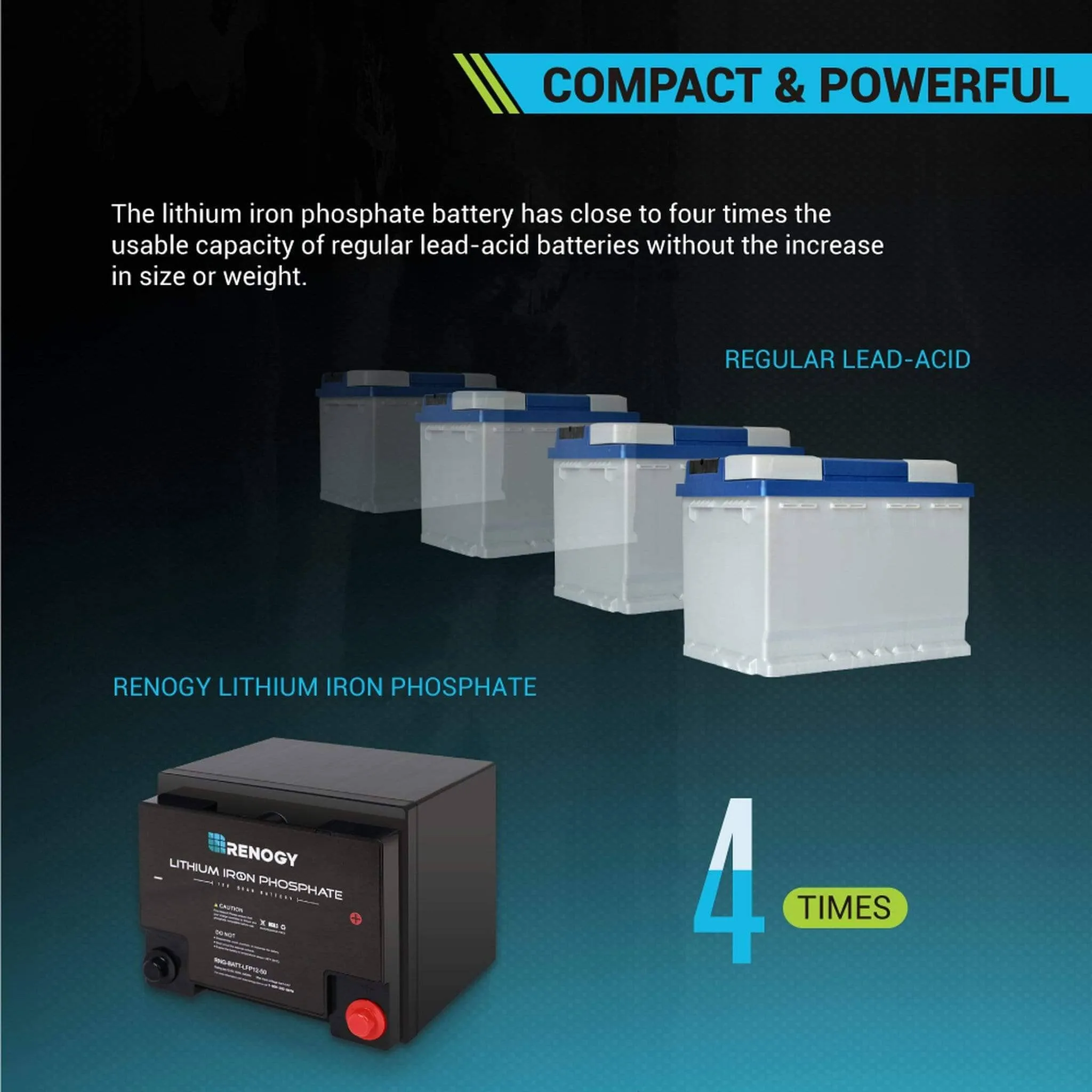

Take your deep cycle battery experience to the next level by investing into Renogy's LFP Battery, combining superior lithium-iron phosphate technology to provide a better solution to solar energy storage. Weighing at just a bit over 14.8 lbs, Renogy's LFP battery surpasses expectation by being lighter, compact, and more powerful than its lead-acid battery counterparts of 50Ah. Designed to replace conventional solar battery storage units such as sealed Sealed, AGM, or Gel batteries, utilize your LFP battery in power-sport applications, off-grid applications, solar energy storage, and more! Take a step into the right direction by pairing your solar system with one of the safest and highest-cycle battery chemistry yet.
The Renogy Adventurer Li and Rover charge controller are fully compatible with this battery.
Note:
- Please be aware that if the batteries' Battery Management System (BMS) is activated and the battery voltage shows 0V, you must use a compatible Li charger to reactivate our Li batteries.
- Make sure to tightly screw the battery terminals in, having loose battery terminals will cause the terminals to build up heat resulting in damage to the battery.
- DO NOT string this battery in series. It is made ONLY for parallel connections using identical batteries.
- Lightweight
- BMS protection

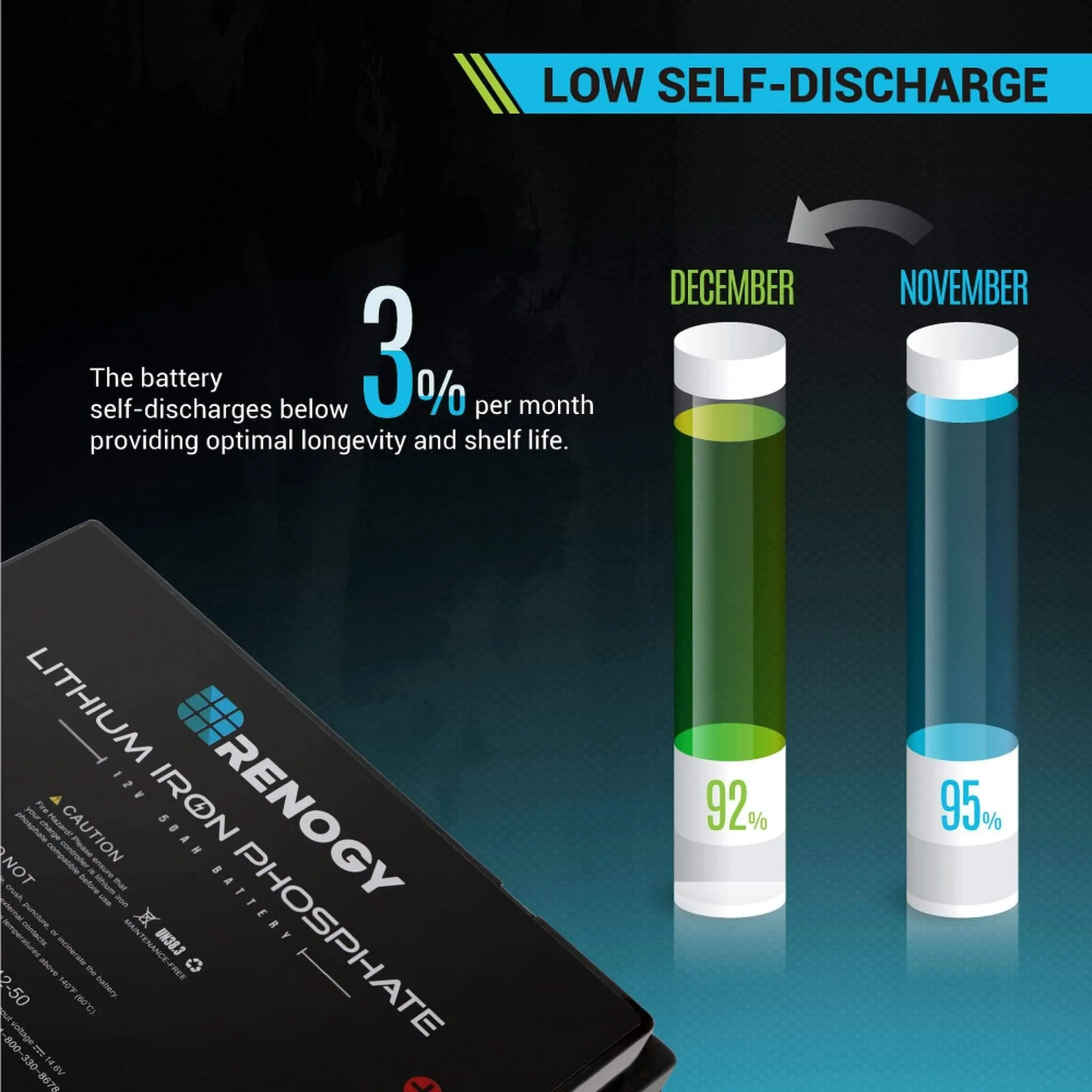

- Low Self-discharge

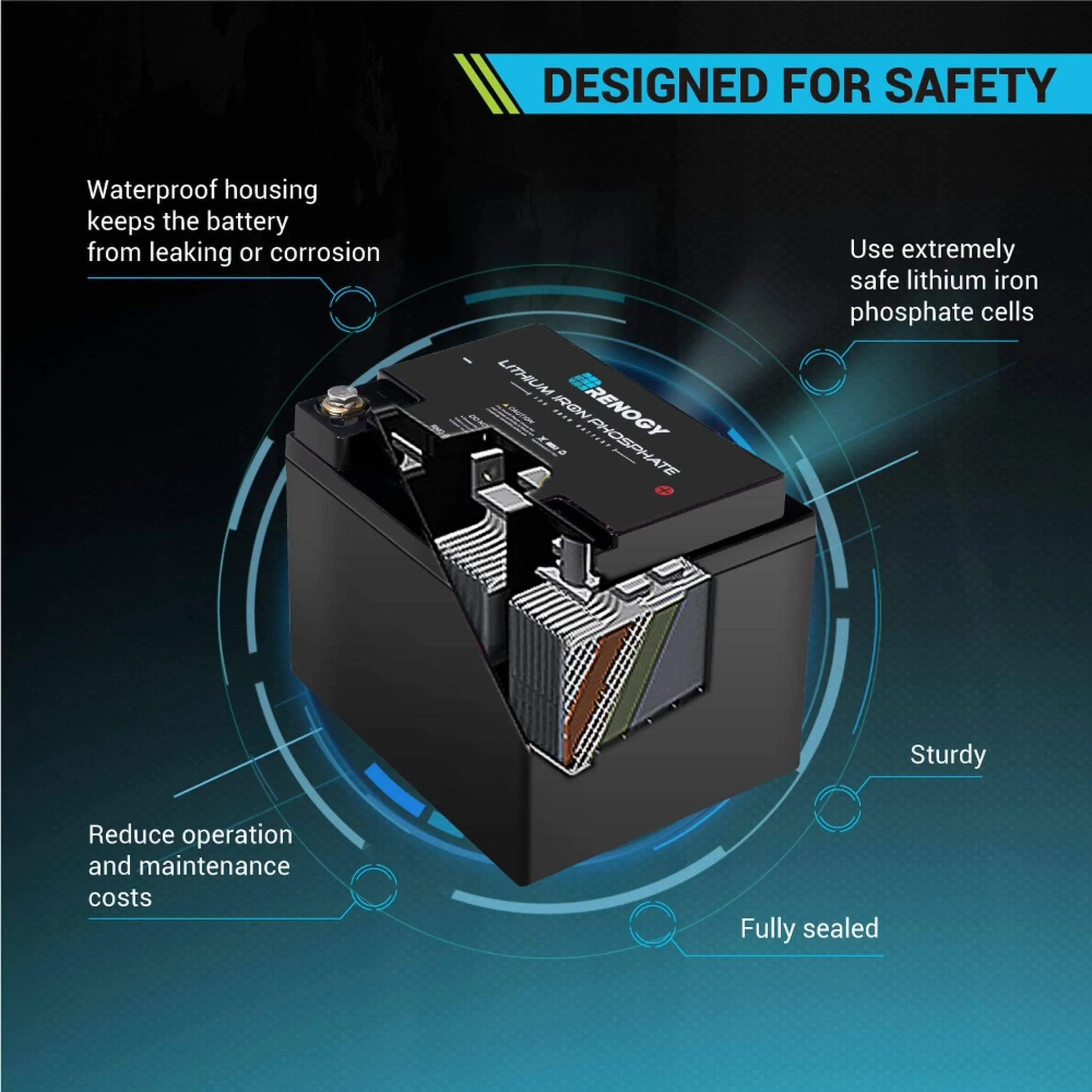

- Triplex Sealed Construction
- Patent Designed Construction

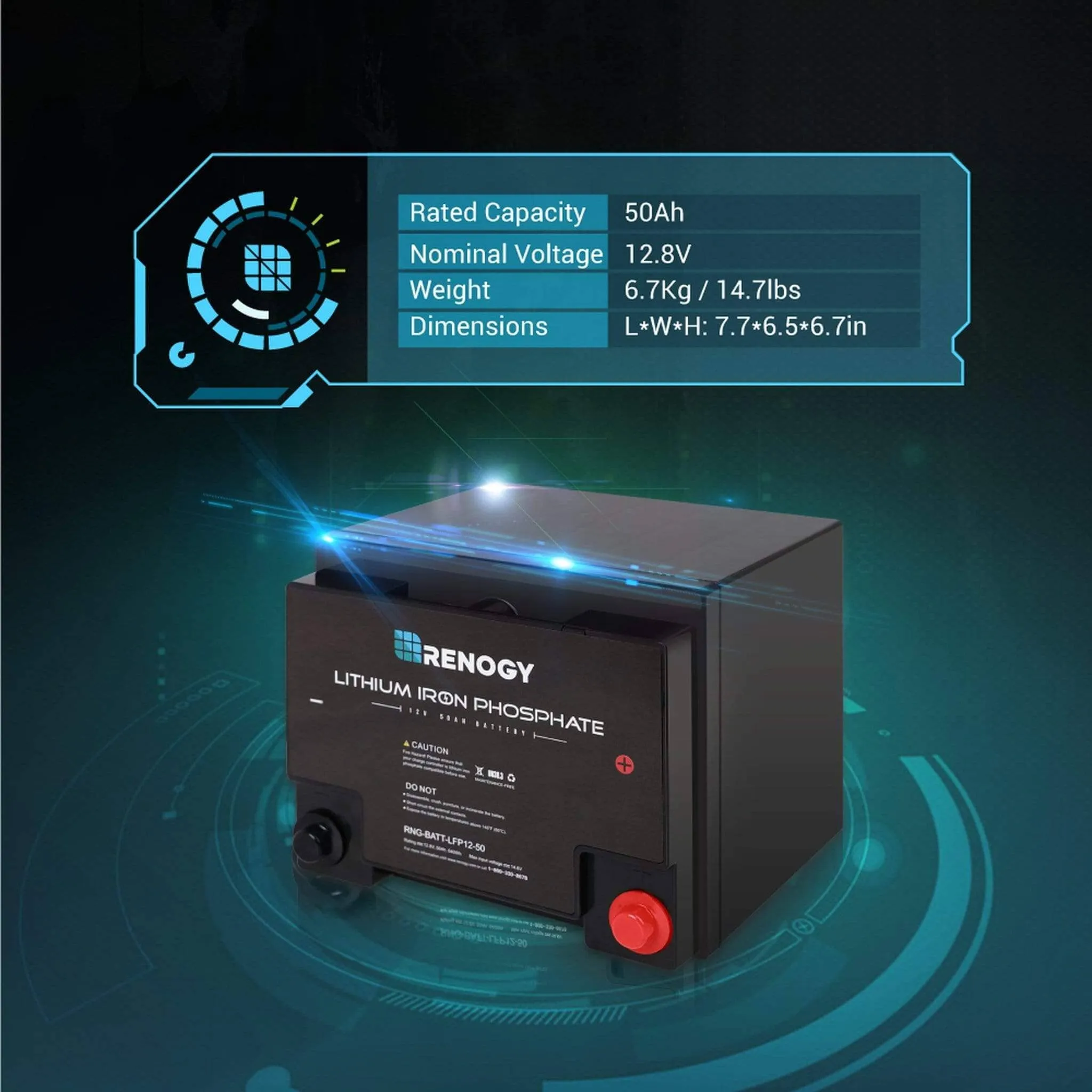

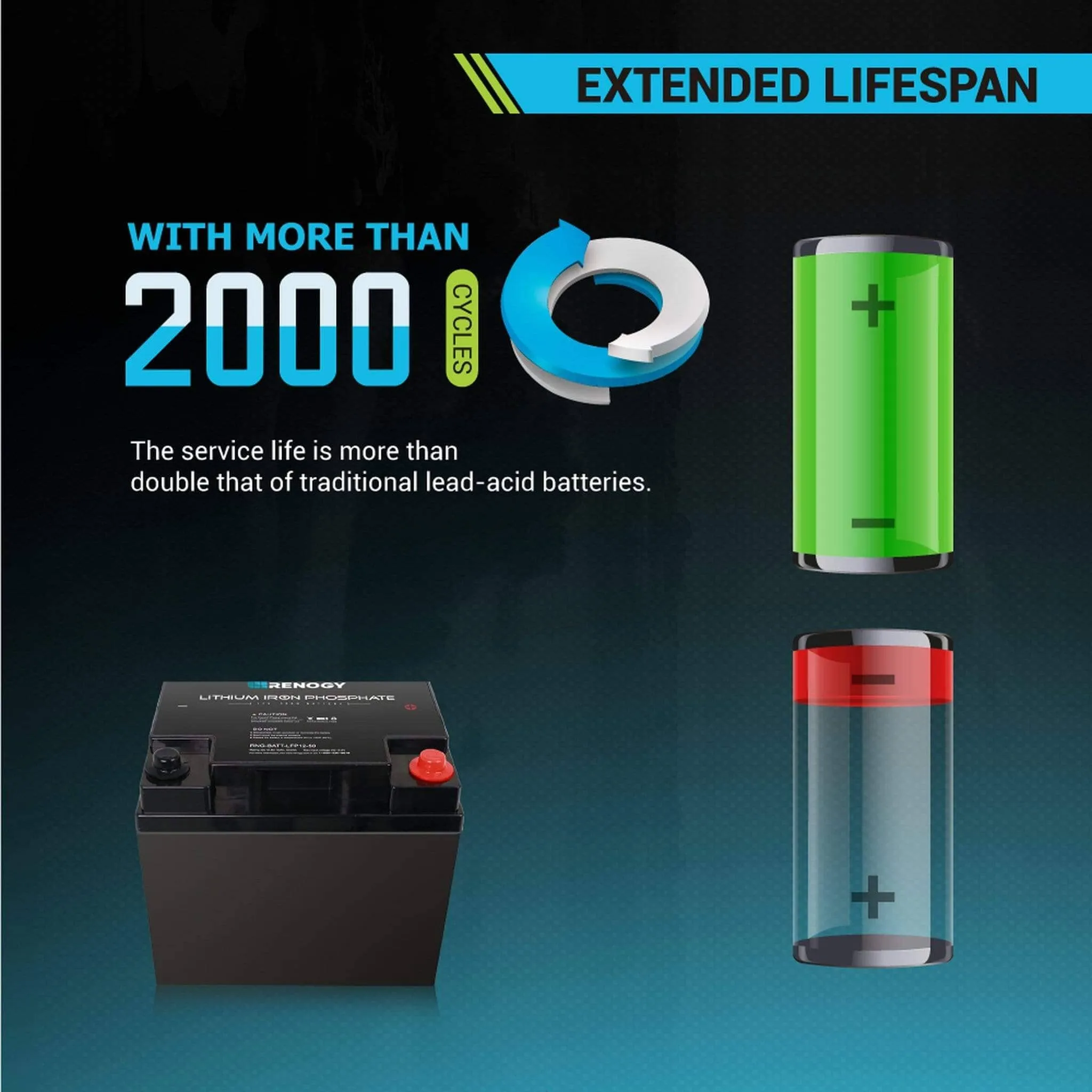

| ELECTRIC CHARACTERISTICS | | | Nominal Voltage: 12.8V | Energy Density: 114.4Wh/L | | Rated Capacity (0.2C): 50Ah | Internal Resistance: ≤50mΩ | | Minimal Rated Capacity (0.2C): 47.5Ah | Cycle Life (0.2C, 20±5°C): 80% DOD 2000 cycles | | Energy: 640Wh | Specific Energy: 95.5Wh/kg | | CHARGING PARAMETERS | DISCHARGE PARAMETERS | | Charge Voltage: 14.4 ± 0.2V | Maximum Continuous Discharge Current: 50A | | Maximum Charge Current: 50A | Discharge Cut-off Voltage: ≥10V | | Charge Cut-off Voltage: 14.6V | | | TEMPERATURE PARAMETERS OPERATION TEMPERATURE RANGE | TEMPERATURE PARAMETERS STORAGE TEMPERATURE RANGE | | Charge:32~113°F/ 0~45°C | Less Than 1 Year:32~77°F/ 0~25°C | | Discharge:-4~140°F / -20~60°C | Less Than 3 Months:23~95°F / -5~35°C | | Recommended:73.4 ± 9°F / 23 ± 5°C | | | MECHANICAL PROPERTIES | | | Length: 197mm / 7.8 inch | Weight: 6.7 kg / 14.7 lbs. | | Width: 166mm / 6.5 inch | Housing Material: ABS PC | | Height: 171mm / 6.7 inch | Terminal Model: M8x1.25x12mm | | Cell Model: IFR26650-3.4Ah | Assembly Method: 4S15P |
WARRANTY INFORMATION | Accessories | 5-year prorated warranty | |
