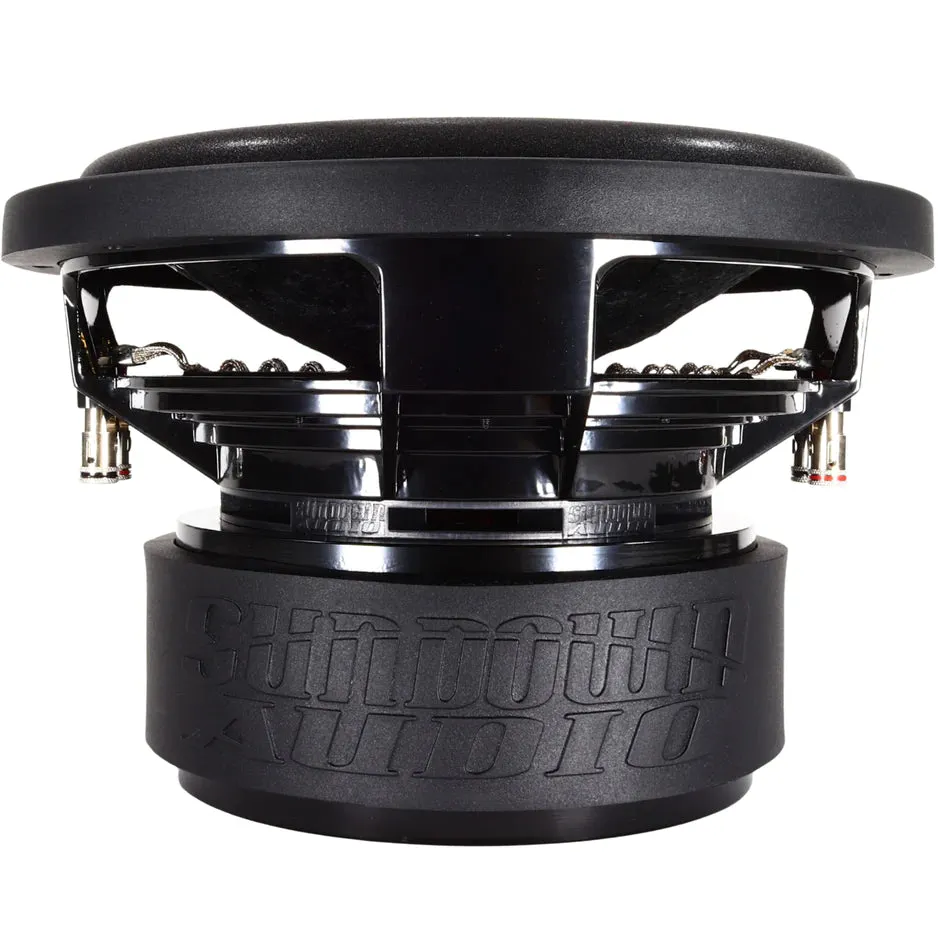

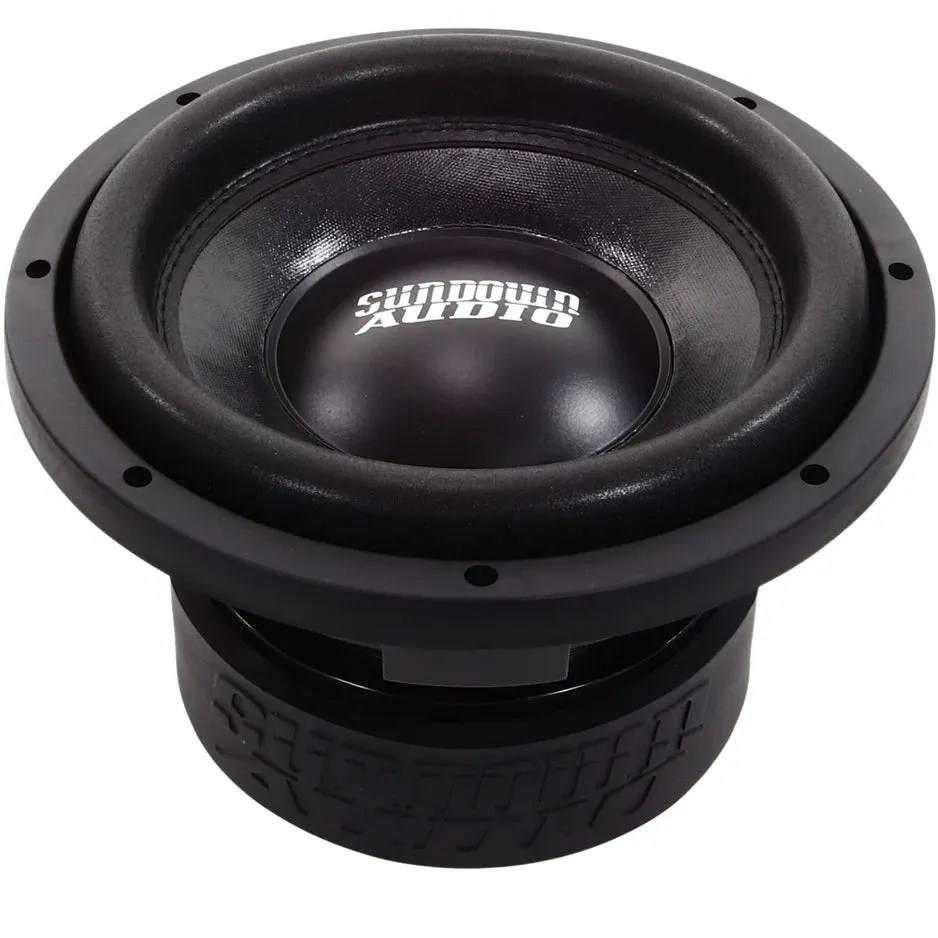

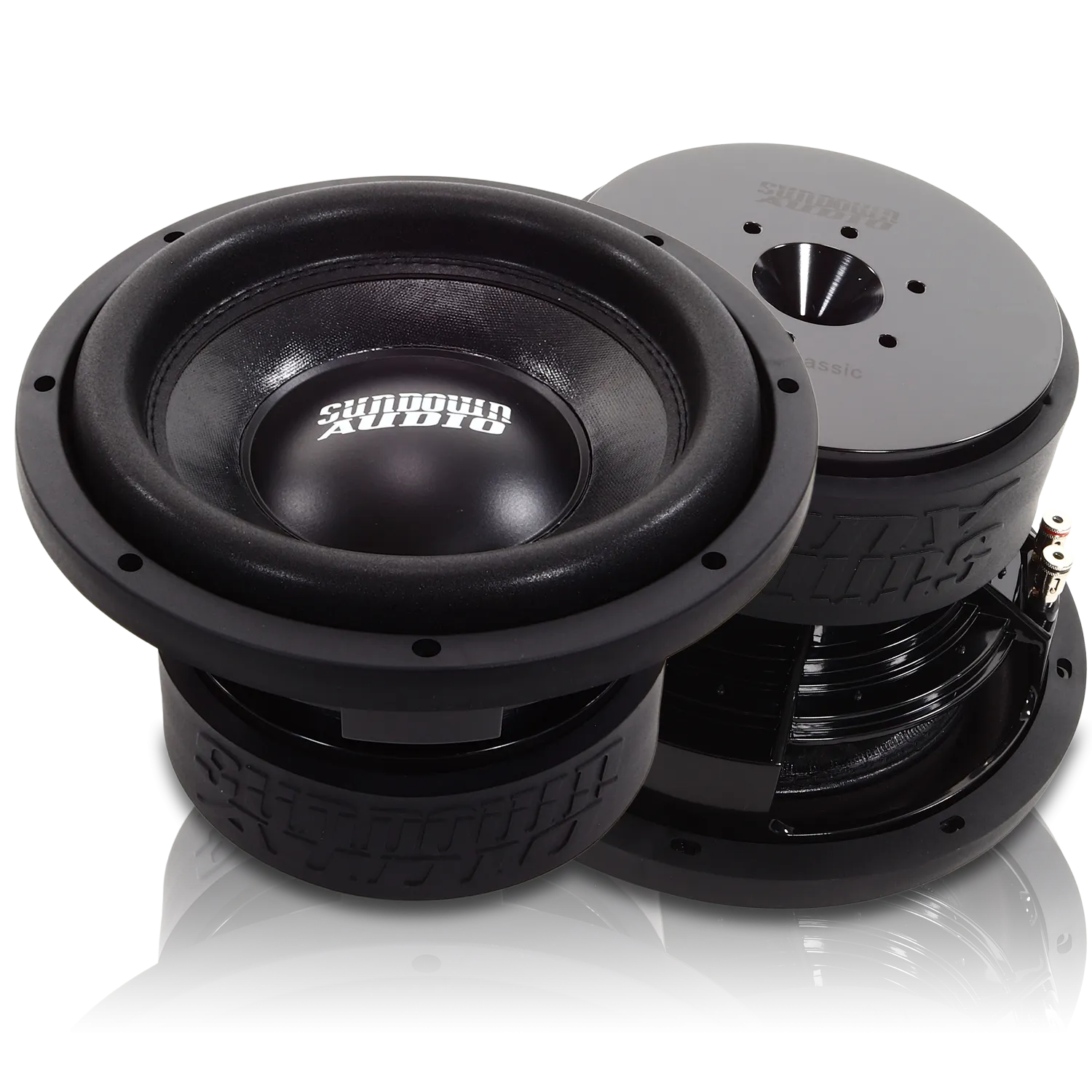

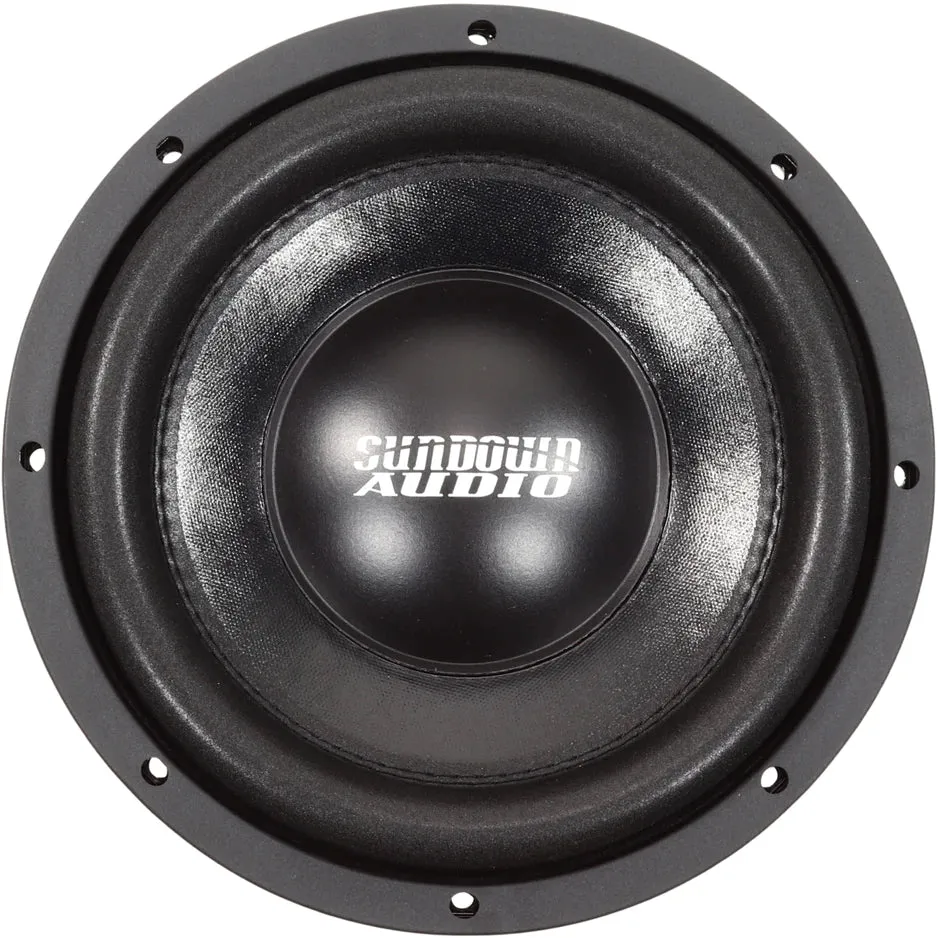

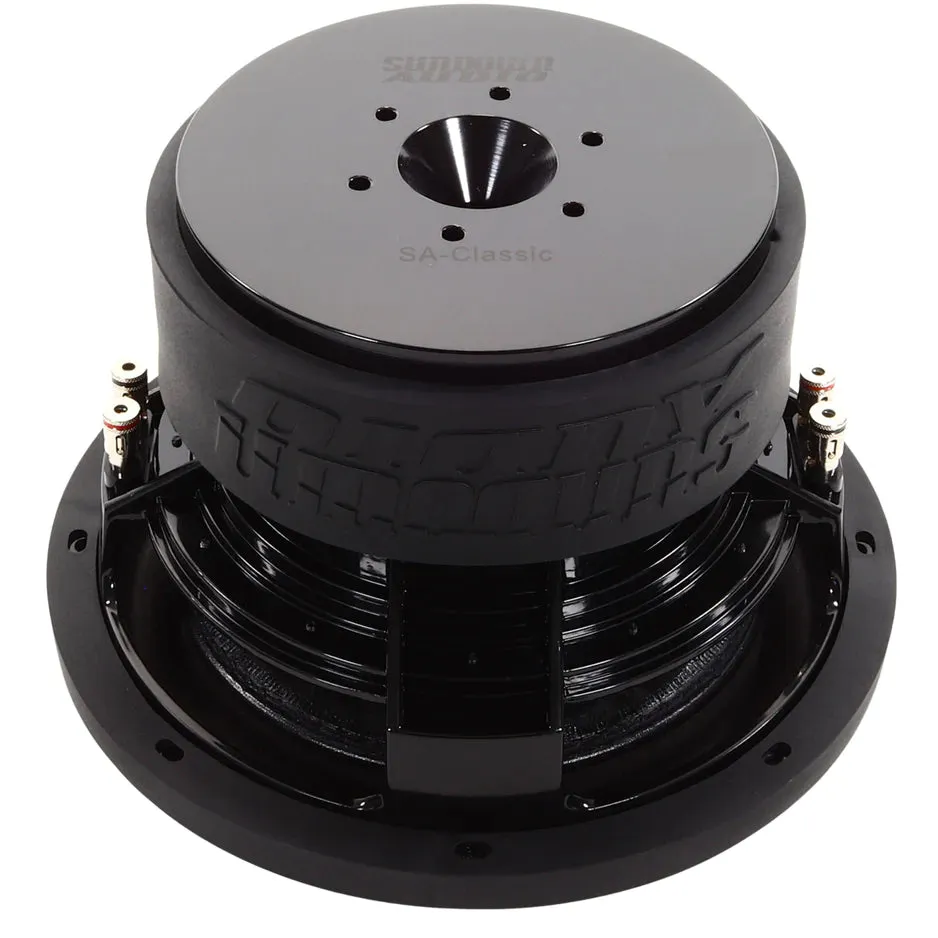

The Sundown Audio SA 10-inch Classic Series subwoofer is a powerful and versatile car audio subwoofer that can handle 750 watts of power. This is the orginal Sundown SA 10 FORMULA It features a cast aluminum frame, a 10-inch woofer, and a 2-inch voice coil. The Sundown Audio SA 10 Classic - 2 Ohm is designed to give you the best bass experience in your car. It has a frequency response of 20Hz to 500Hz and is capable of producing deep, powerful bass while staying musical. It is also relatively compact and can be easily installed in most cars. This is the subwoofer that put Sundown Audio on the Map, these sa series play musically!
Details:
- Xmax = 19mm one-way by 70% BL
- RMS Power: 750-watts
- Vented magnetic gap
- Optimized high-velocity pole vent
- Innovative high-velocity vented frame spacer ring
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High Temperature copper voice coil wire
- Large aluminum faraday ring (Magnet ID)
- Spring Loaded Terminals
- Stitched-On “XL” Tinsel Leads to prevent fatigue and failure
- High strength cast aluminum frame
- Optimized for small ported, sealed, & band-pass enclosures
- Mounting Depth: 6.0"
- Mounting Diameter: 9.28"
Specifications:
- RE (ohms): 4.29
- FS (Hz): 35.4
- Vas (L): 10.13
- Qes: 0.52
- Qms: 5.41
- Qts: 0.48
- Le (mH): 3.41
- BL (NA): 20.40
- Mms (Grams): 230
- Cms (uM/N): 87.8
- Sens (1w/1m): 81.0
Subwoofer Enclosure Requirement:
- Sealed: 0.5 ft^3
- Ported: 1.0-1.25 ft^3 @ 35hz
- Displacement: 0.10 ft^3
- Depth: 6"
- Outside Diameter: 10.5”
- Cut-Out: 9.25”
- Weight: 30LB
| DC Resistance (Re) | Ω | 4.29 |
| Resonance Frequency (Fs) | Hz | 35.4 |
| Equivalent Volume (Vas) | L | 10.13 |
| Electrical Q Factor (Qes) | 0.52 | |
| Mechanical Q Factor (Qms) | 5.41 | |
| Total Q Factor (Qts) | 0.48 | |
| Voice Coil Inductance (Le) | mH | 3.41 |
| Force Factor (BL) | NA | 20.40 |
| Moving Mass (incl. Air Load) (Mms) | g | 230 |
| Suspension Compliance (Cms) | mm/N | 87.8 |
| Sensitivity | 1w / 1m | 81 dB |
| Sealed Enclosure Suggestion | cu. ft. | 0.5 |
| Ported Enclosure Suggestion | cu. ft. | 1.0 - 1.25 @ 35Hz |
| Displacement | cu. ft. | 0.10 |
| Depth | in | 6 |
| Outside Diameter | in | 10.5 |
| Cutout | in | 9.25 |
