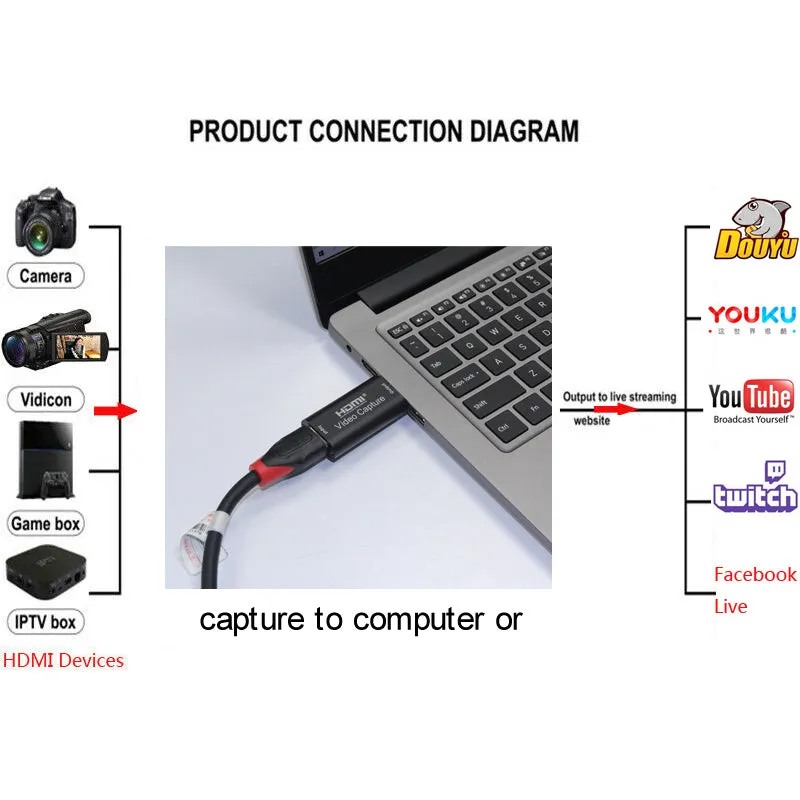

This video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and push to online live broadcast platforms.

Suitable for high definition acquisition, teaching recording, medical imaging, etc.

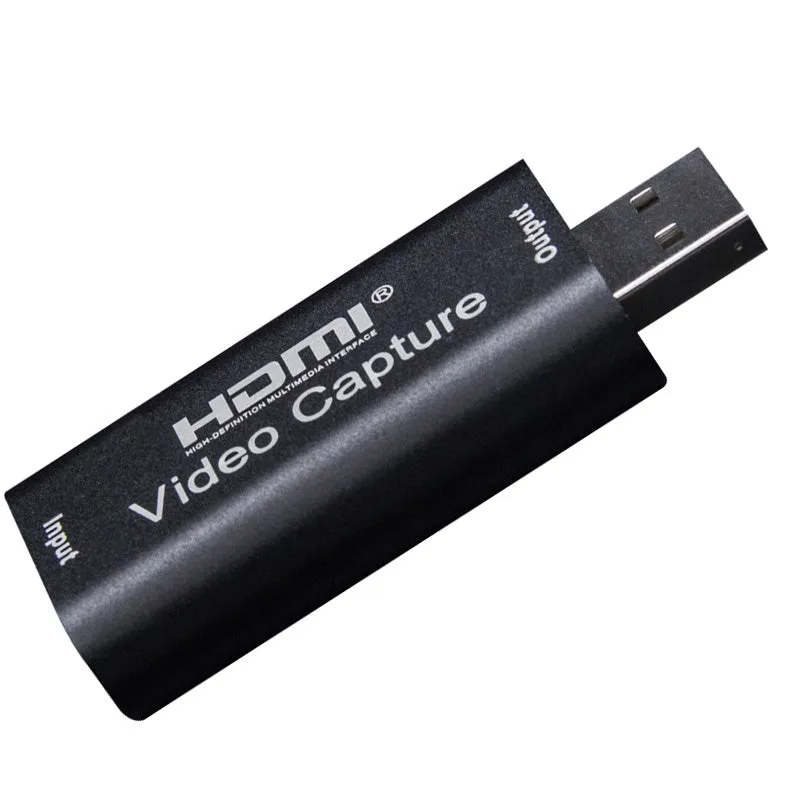

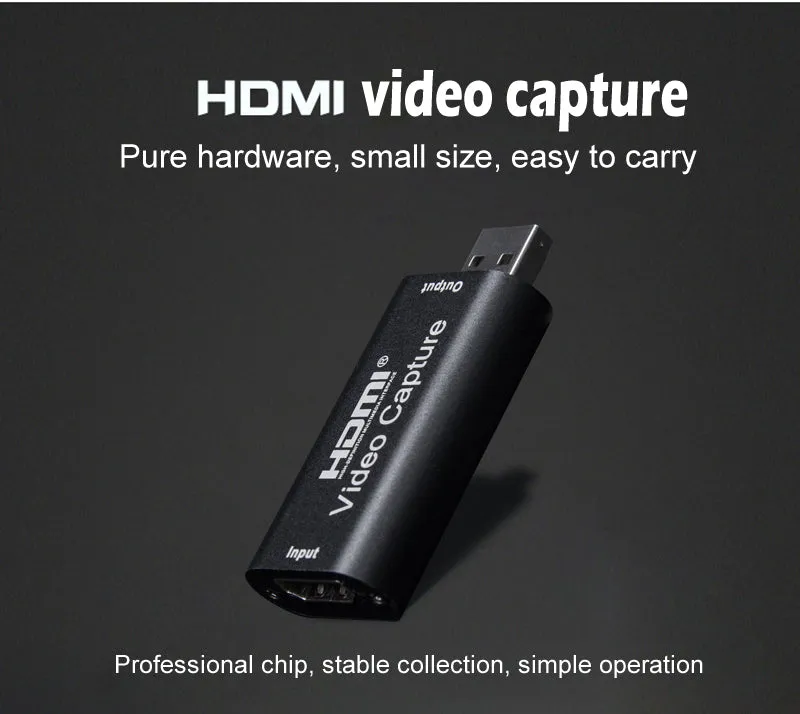

HDMI video Capture pure hardware, small size, easy to carry.

Professional chip, stable collection, simple operation.

Supports most HDMI output Devices.

Description:

Product Name: Video Capture Card

Color: B lack

Size: 64x28x13mm

Manufacturing method: Semi mechanical

Material: Metal

Features:

* Support input max resolution 3840x2160@30Hz

* Support output max resolution 1920x 1080@30Hz

* Support 8/10/12bit deep color.

* Support AWG26 HDMI standard cable: input up to 15 meters,1080P and below resolution

* Support most acquisition software, such as VLC,OBS,Amcap, etc.

* Support Windows and MacOS

* Conform to USB Video and UVC standard

* Conform to USB Audio UAC standard

* Without external power supply, compact and portable.

*HDCP Content Encryption HDMI Devices is not allowed for capture

Specifications:

HDMI resolution: Max input can be 3840x2160@30Hz

Support video format :8/10/12bit Deep color

Video output format:YUV,JPEG

Support audio format: L-PCM

Input cable distance:15m,AWG26 HDMI standard cable

Max working current:0.4A/5VDC

Operating Temperature range: -10 to 55C

Applicable scene: Streaming Media Software And Live Platform

Package Contents:

1X Video capture

1X User manual

Note: The colors deviation might differ due to different monitor settings.

Manual measuring, please allow 1 ~ 3mm error,thank you.
