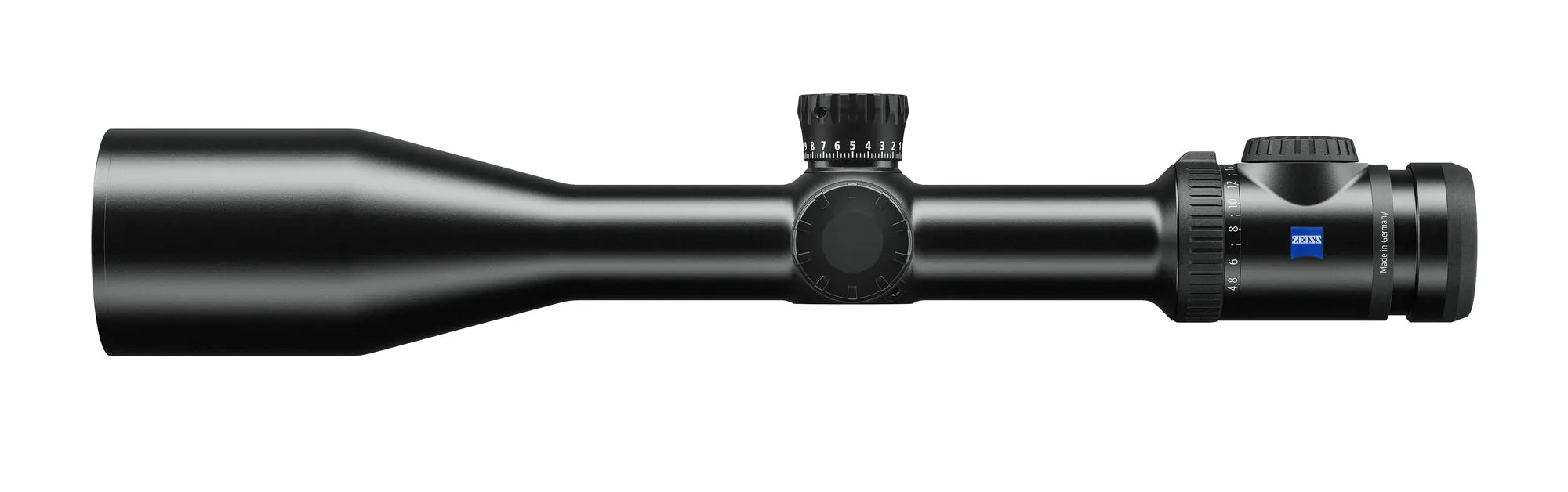

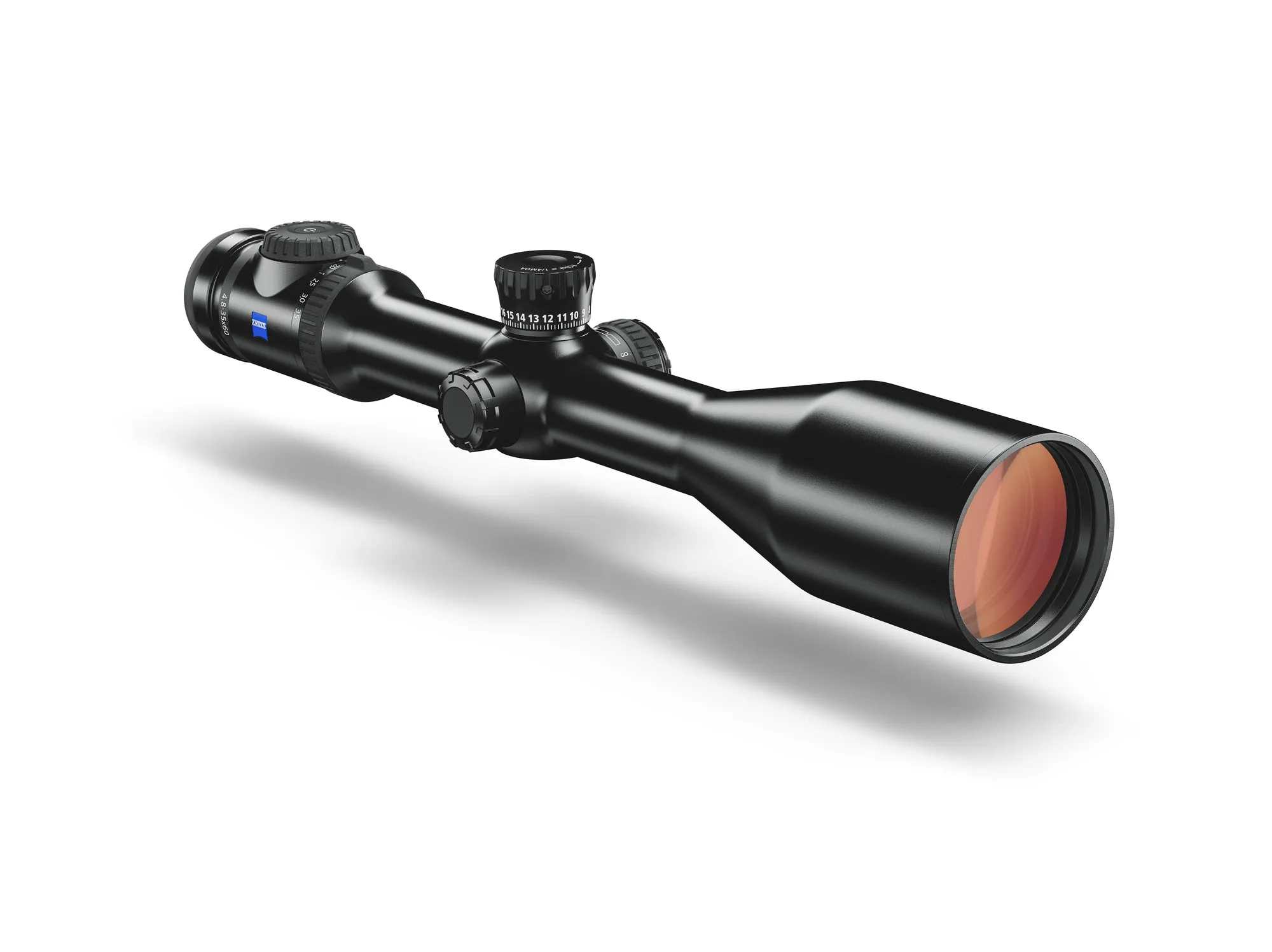

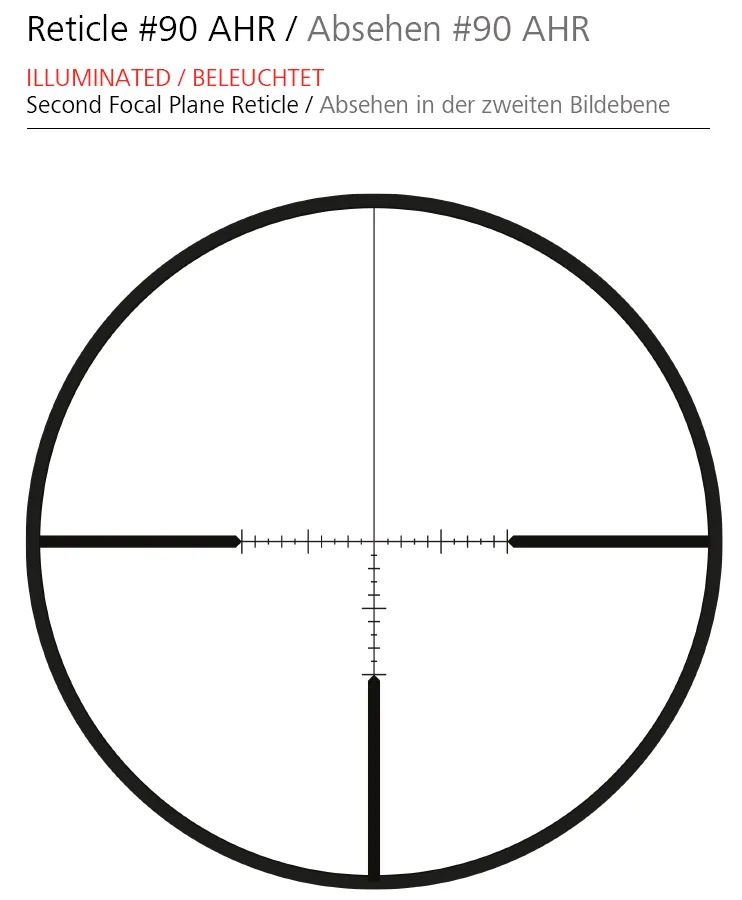

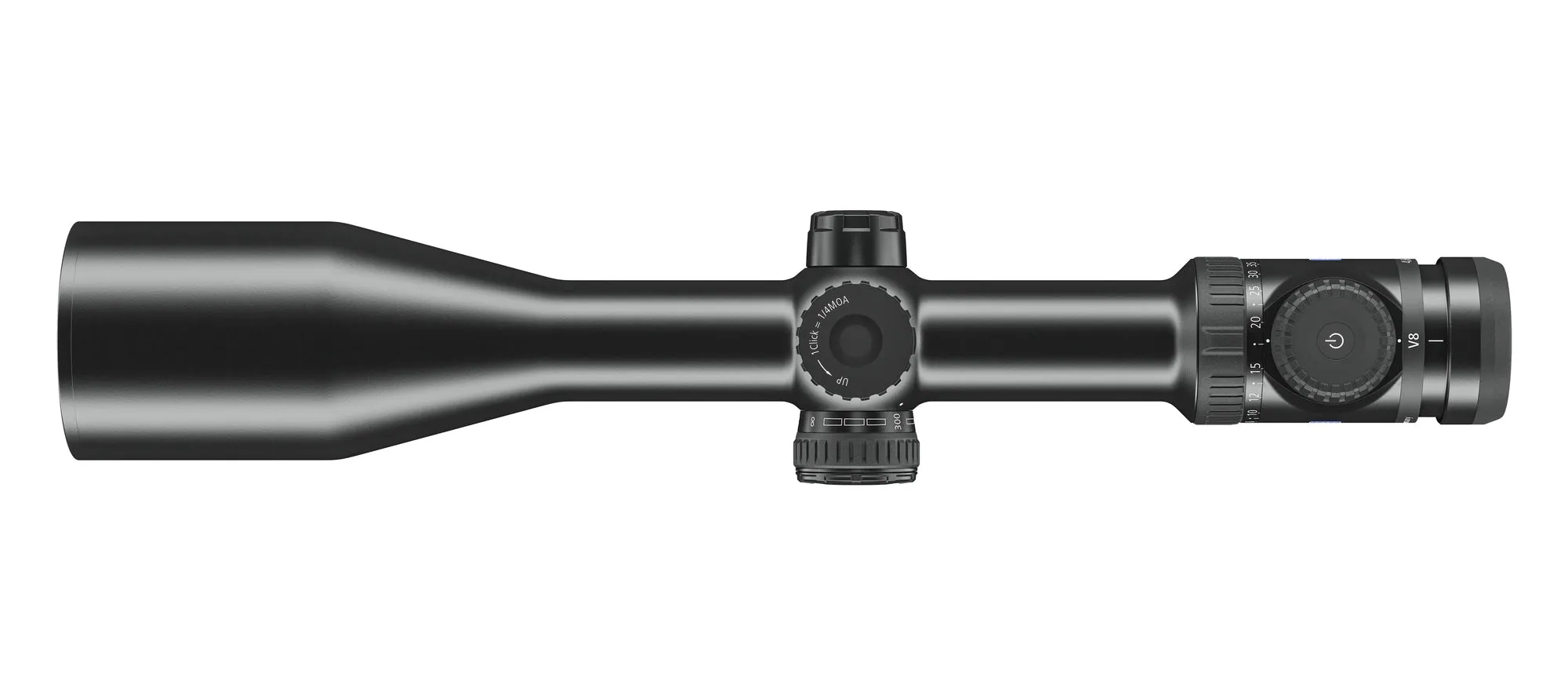

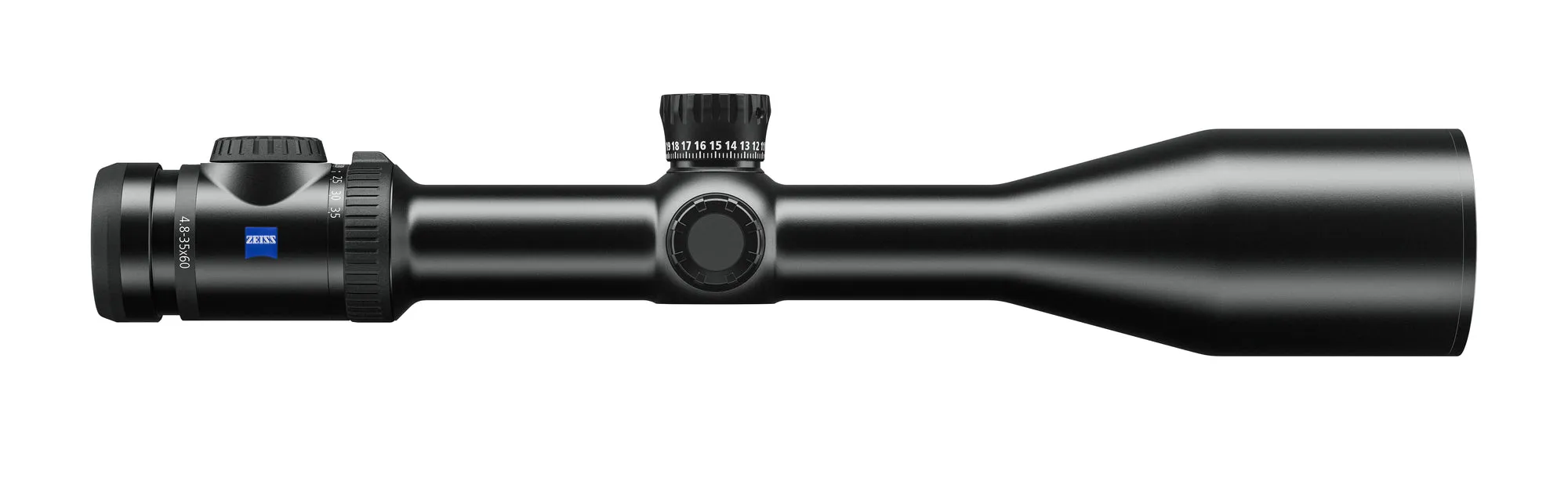

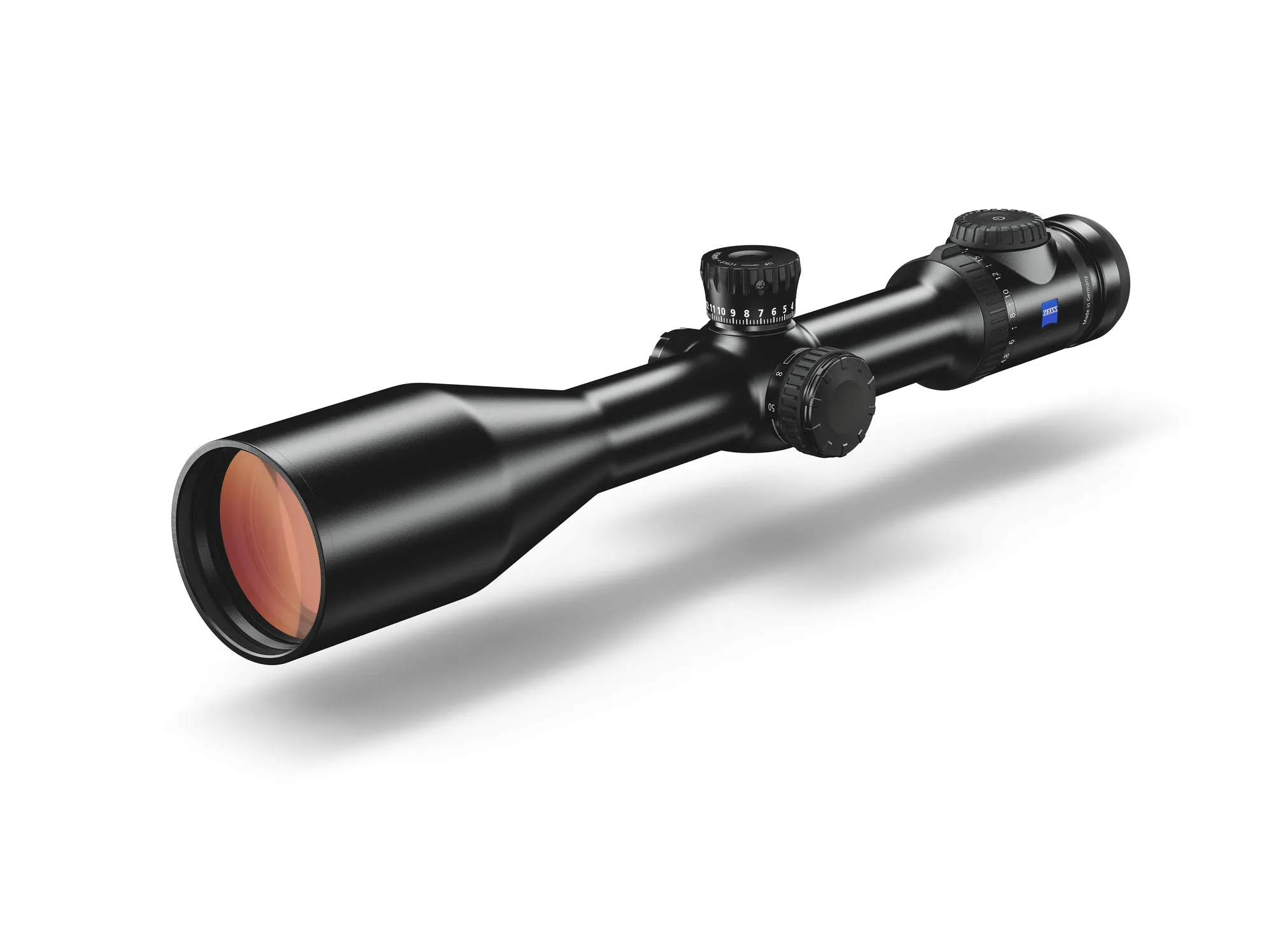

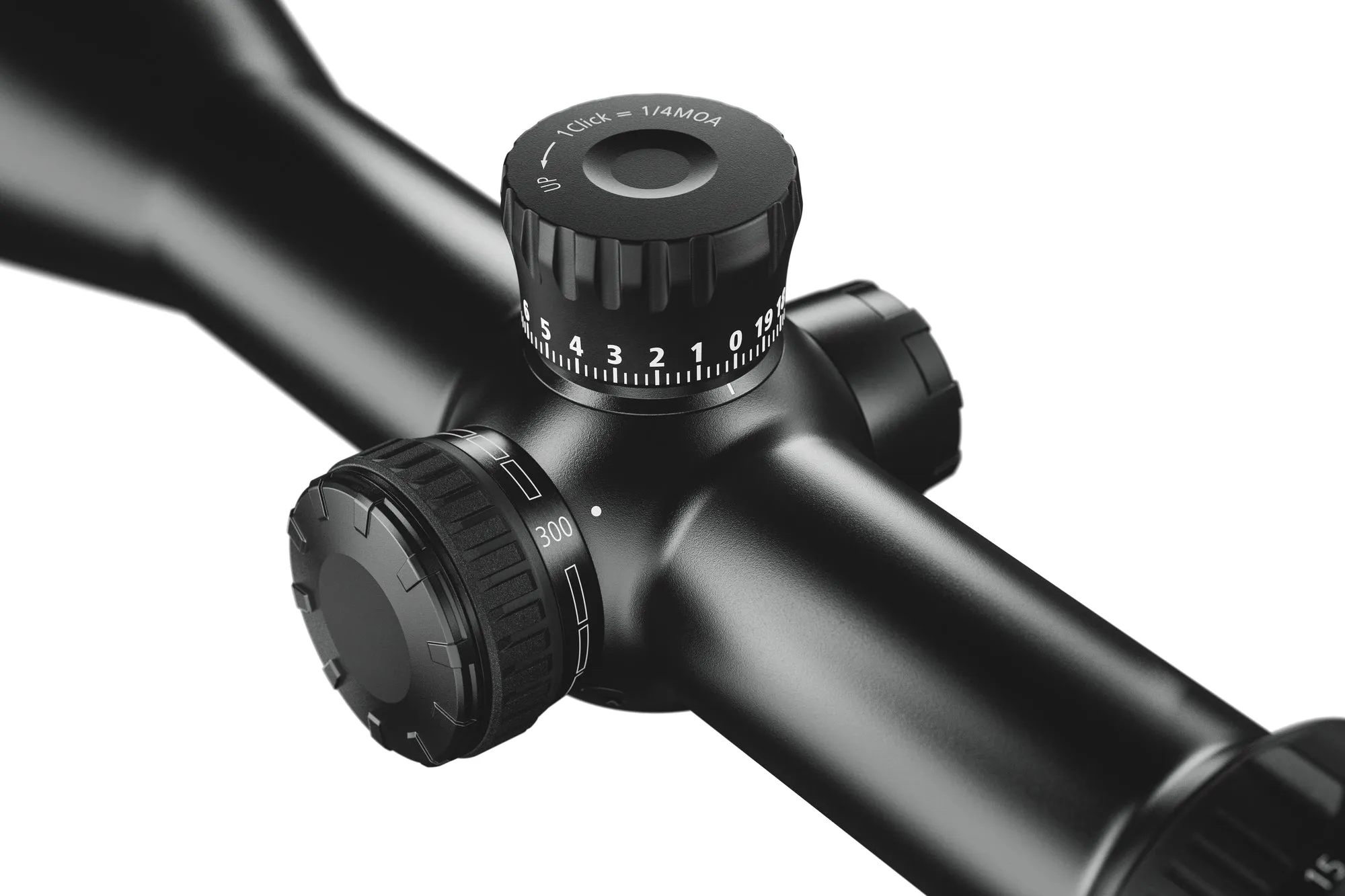

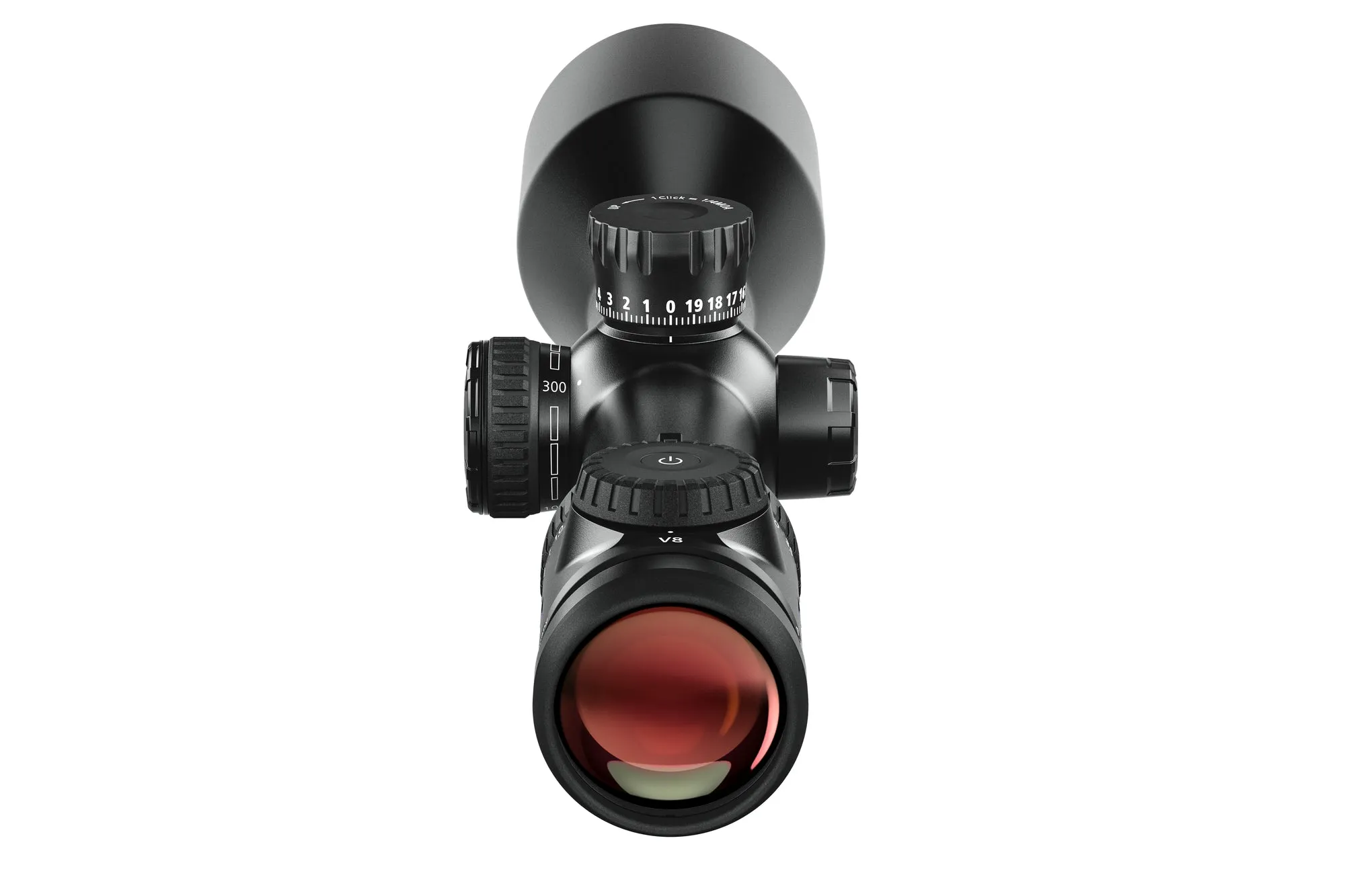

The Pinnacle of Optical Performance. The Zeiss V8 NA 4.8-35x60 #90 AHR 522143-9990-040 is specifically configured for North America and long range hunting. The Zeiss V8 NA 4.8-35x60 #90 AHR 522143-9990-040 features an external elevation turret, .25 MOA turret adjustments, and illuminated reticle #90. The distinctly innovative optics utilize exotic glass types, from SCHOTT glass, consisting of multiple FL (fluoride) and HT (high-transmission) lens elements. The optical system yields an impressively bright image, with a guaranteed light transmission value of 92%. The exterior lenses are then protected from environmental abuse with ZEISS’ LotuTec protective lens coatings. An immediate advantage of these designs is the extra-large and extra-friendly eye box that allows for faster target acquisition. The specialized optics are housed in a modern and compact 34 mm main tube design. The external elevation turret with ballistic stop adjusts clockwise for bullet impact down and counter-clockwise for bullet impact up. The opto-mechanical system has been torture tested to endure over 800 cycles of impact testing at 1,000 g-force and final tested to withstand multiple impact cycles at 1,500 g-force. V8 scopes are waterproof to 13 feet for up to two hours – further confirming that ZEISS quality standards are achieved.
SPECIFICATIONS:
Magnification Minimum: 4.8
Magnification Maximum: 35
Objective Tube Diameter (mm): 67
Objective Lens Diameter (mm): 60
Effective Lens Diameter (mm): 48.1 - 60
Exit Pupil Diameter (mm): 9.9 - 1.7
Eye Relief (mm): 92
Eyepiece Tube Diameter (mm): 46
Main Tube Diameter (mm): 34
Fogproof Method: Nitrogen Purged
Lens Coating Name: LotuTec / ZEISS T*
Lens Type: SCHOTT FL, HT
Waterproof Level: 400 mbar
Ballistic Stop: Yes
Click Value (MOA): 0.25
Diopter Adjustment Range (dpt): -3.5 / 2
Elevation Adjustment Range (MOA): 80
Field of View at 100 yds (ft): 25.8 - 3.6
Focal Plane: Second Focal Plane
Operating Temperature: -13F / 122F
Parallax Setting (yds): 54 to infinity
Elevation Turret: External
Twilight Factor: 13.6 - 45.8
Windage Turret: Capped
Country of Origin: Germany
Battery: CR2032 - Included
Product Length x Width x Height (inches): 15.7 x 3.8 x 2.9
Product Weight: 35.1 oz.
SKU: 522143-9990-040
