Note：ZWO Cooled cameras require a 12V power source for the TEC cooler and USB hub power. If you don't have one, please add it through the options on the right side of the product display.

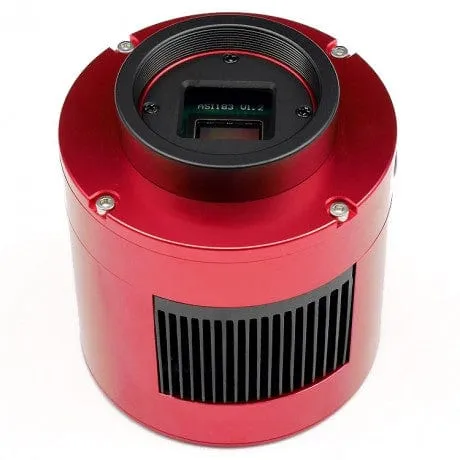

Introducing the ASI183 camera series, the most sensitive cameras in ZWO history. Peak QE of the mono sensor reaches 84%!
Diagonal 15.86 mm Approx. 20.48M-Effective Pixel Monochrome/Color CMOS Image Sensor
High-Speed and High-Picture-Quality Rolling Shutter-Type Back-Illuminated CMOS Image Sensors
In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel. The optical size is 1 inch.
DDR Memory Buffer
The ASI183 Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.
DDR memory buffer is the main difference between ASI "Cool" and "Pro" cameras.
Astrophotography Performance

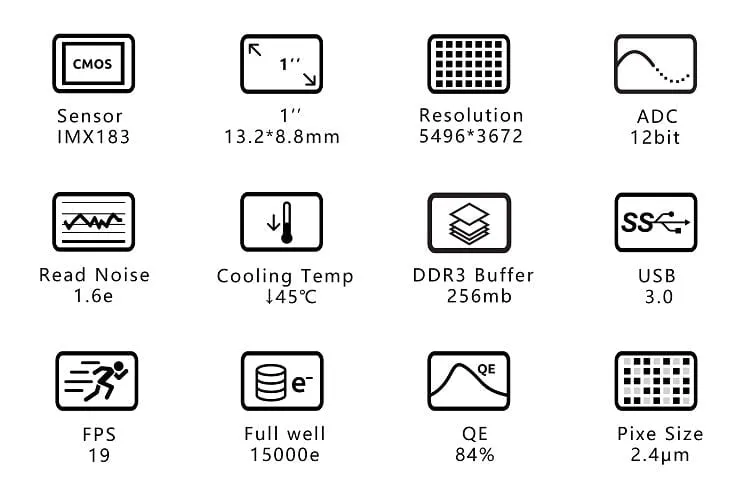

The ASI183 cameras has a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.
Reliable Design
ASI183 Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable.
Even when used in higher humidity environments, ASI183 Pro will still work fine without dew problems.
High Speed
Fast FPS can be used in solar(white light) and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.
Note: The IMX183 sensor can display grid pattern noise when performing Ha solar imaging - please take flat frames for calibration to remove them. ZWO also recommends the ASI1600/ASI174 mono cameras for Ha solar imaging.
10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps
High QE
Sony's back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.
Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.
Dark Current
The dark current of the ASI183 is extremely low, based on our test results.
Dark frame sample @ Highest dynamic range settings(gain=0), 300s, -10°C, bin1. Please check the dark frame to make sure you are fully know the performance.
USB 3.0 Port & USB 2.0 HUB
USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 Pro to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode) at full resolution(20.18Mega).
USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI183 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.
Cooling System
The ASI183 Pro has a 2-stage TEC cooling system that enables deep cooling (40°C-45°C below ambient). The cooler requires an external power supply, which is not included with the camera. You may order a suitable power supply from .
Recommended cooler power supply: 12V @ 3-5A (or more) DC adapter (2.1×5.5mm, center pole positive). Also suitable: DC battery with 9-15V.
Using a battery with 9-15V is also suitable for the cooler power supply.
Connection Diagram
1. M43-T2 adapter (optional)
2. EOS-T2 adapter (optional)
3. 2"Filter (optional)
4. 1.25" T-Mount
5. 1.25" Filter (optional)
6. M42-1.25" Filter (optional)
7. T2 extender 11mm
8. M42-M48 extender 16.5mm
9. T2-T2 adapter
10. EFW mini(optional)
11. EOS adapter for EFW(optional)
Mechanical Diagram
What's in the Box?
The ASI183 Pro includes all necessary cables, adapters, and manuals.
Spacer thickness: 0.1mm *1 0.2mm *2 0.5mm *1
Note：ZWO Cooled cameras require a separate 12v power supply, If you don't have one, please add one from the options on the right side.
Solution for 55mm Back Focus
Read more:
Drivers and Software:
The ZWO website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting:
Product Review:
